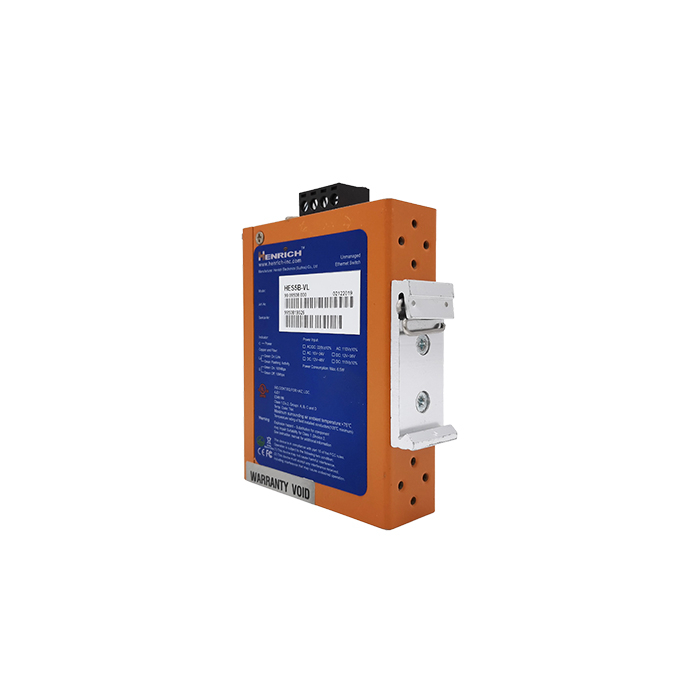

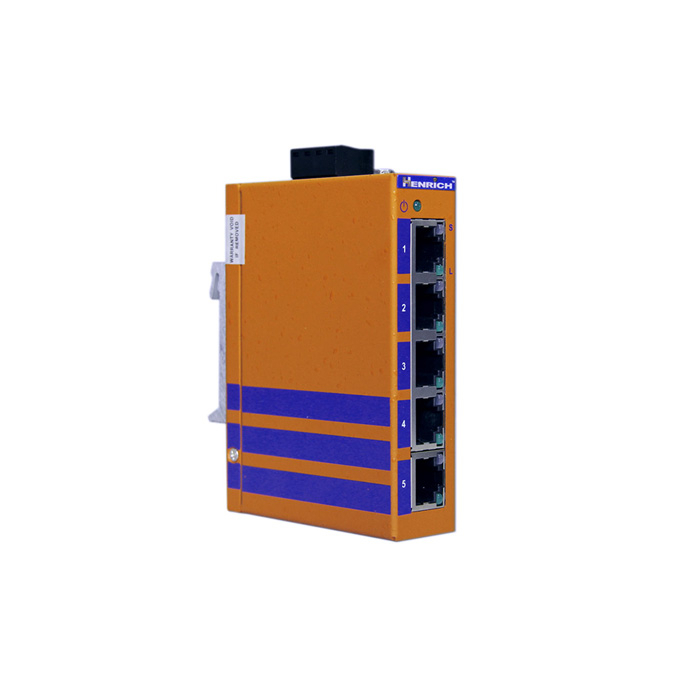

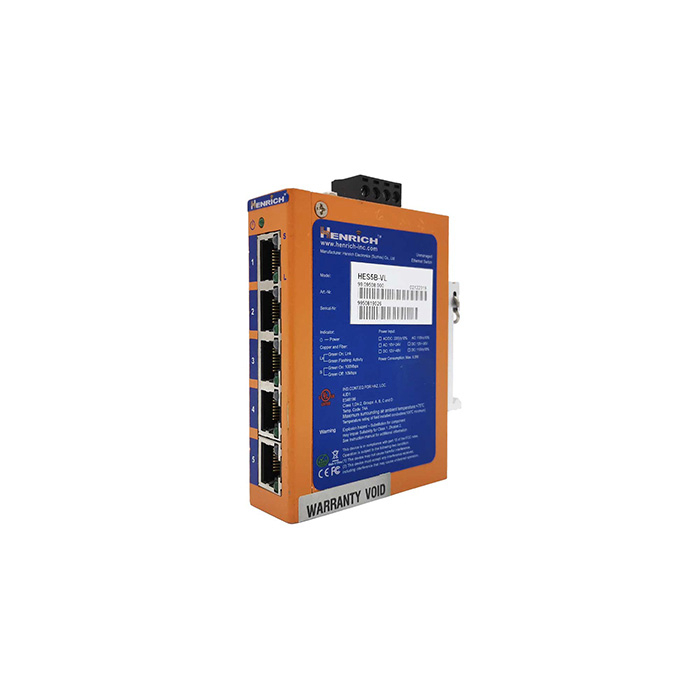

Henrich HES5B-VL 5-port Din-rail Unmanaged Ethernet Switch
Manufacturer Part Number: HES5B-VL
Brand: Henrich
$ 108.50
- 5 100 Mbps Copper Ports
- UL/cUL Class 1/Division 2 Groups A,B,C, and D
- Designed to Meet Level 3 (Heavy) Industrial Environments
- EN61000-6-2 Certifications
- Shock, Vibration, Free Fall Tested
- IP30 Rated DlN Rail Case
See our Shipping Policy for delivery regions and fees
90 Available
The HES5B series of industrial Ethernet switches are entry-level industrial 5-port Ethernet switches that support EEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDl/MDlX auto-sensing RJ45 ports. The HES5B switches are rated to operate at temperatures ranging from -10 to 60°C, or with a wide operating temperature range from -40 to +75°C. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play HES5B switches easy to use and reliable.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 Connector) | 5 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed |
| Standards | IEEE802.3; IEEE802.3u; IEEE802.3x |
Switch Properties
| Processing Type | Store and Forward, Non-blocking Flow Control |
| MAC Table Size | 2k |
Power Parameters
| Input Voltage | 12 ~ 36 VDC and 10 ~ 24 VAC |
| Power Consumption | < 4W |

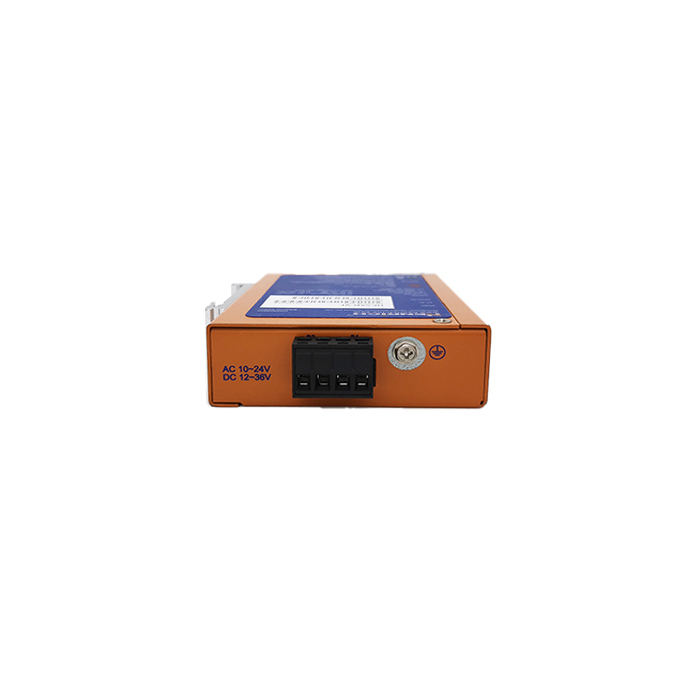

| Power Connector Type | Removable Terminal Block |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Case | Slim Metal Case, IP30 Rating |
| Installation | Din-rail Mounting or Wall Mounting |
| Dimensions (Width × Height × Depth) | 0.98" × 3.94" × 2.95" （25mm × 100mm × 75mm） |
Environmental Limits
| Working Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Relative Humidity | 5% to 90% (No Condensation) |
Industrial Standard
| Safety | cUL508 |
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (CS) Level 3, EN61000-6-2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 Years |
