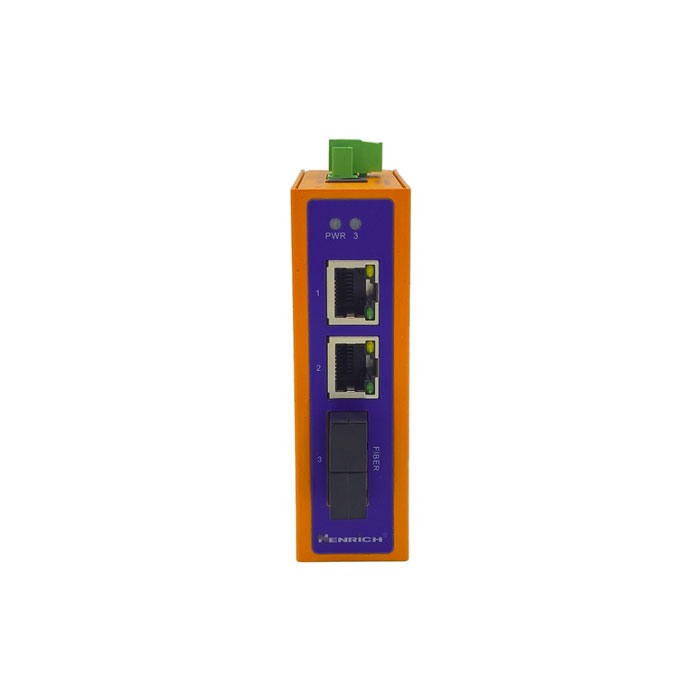

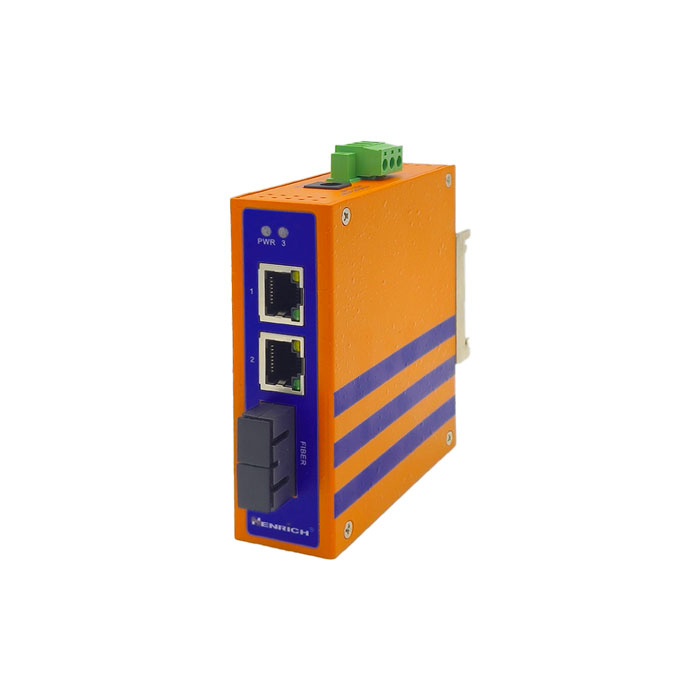

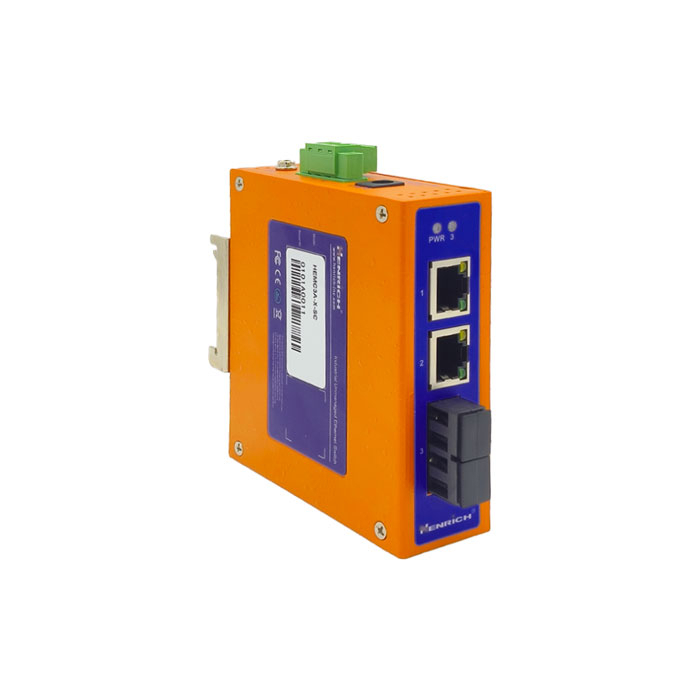

Henrich HEMC3A-X-SSC Industrial 10/100BaseT(X)-to-100BaseFX Media Converter
Manufacturer Part Number: HEMC3A-X-SSC
Brand: Henrich
$ 213.00
- 2 × 10/100BaseT(X) Port and 1 × 100BaseFX Port
- Single-mode SC Fiber Connector
- -40°C to 75°C Operating Temperature
- DC 12-48V Power Supply with Reverse Polarity Protection
- IP30 Din-rail Mounting
See our Shipping Policy for delivery regions and fees
2 Available
The HEMC3A/B-X series industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). With the strengthened EMC grade, the HEMC3A/B-X media converters are designed for harsh industrial environments while complying with FCC, and CE standards. Two operating temperature ranges are supported: -10°C to 60°C and -40°C to 75°C. SC and ST fiber connection types are supported in both multi-mode and single-mode formats for various applications. Reverse polarity protection is supported.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 Connector) | 2 Ports, Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| 100BaseFX Ports | 1 Port, SC Single-mode |
| Standards | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
| Power Connector | DC Socket or Phoenix Terminal, with Built-in Reverse Polarity Protection |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 2km | 20km |
| Center Wavelength | 1310nm | 1310nm |
| TX Power | -5 ~ -13dBm | -5 ~ -15dBm |
| RX Power | ≥-32dBm | ≥-32dBm |
| Transmission Rate | 100Mbps | 100Mbps |
Power Parameters
| Input Voltage | DC 12-48V |
| Power Consumption | Standby < 4W, Full load < 6W |

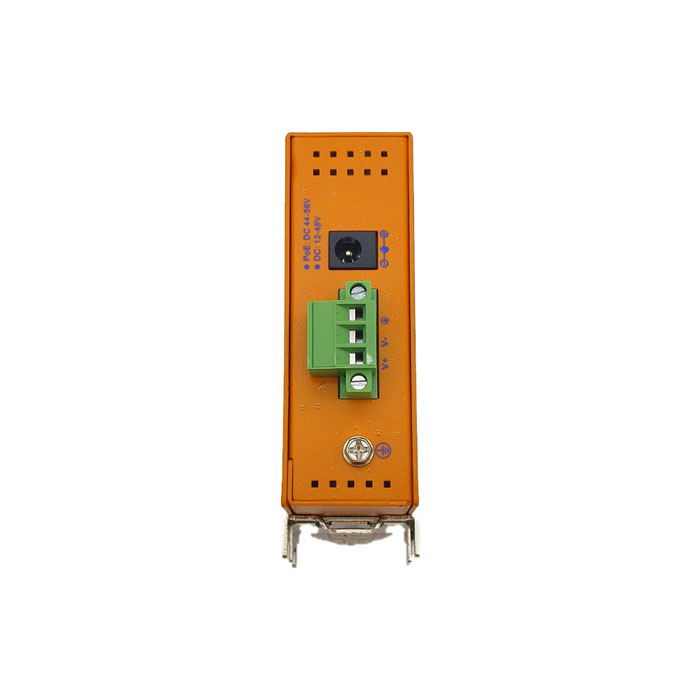

| Power Connector Type | 3-pin Industrial Phoenix Terminal |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP30 Rating |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 1.2" × 3.9" × 3.5" (30mm × 98 mm × 88 mm) |
Environmental Limits
| Working Temperature | -40℃ to 75℃ |
| Storage Temperature | -40℃ to 85℃ |
| Relative Humidity | 5% to 90% (Non-condensing) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 years |
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, ST Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100 Mbps Copper Port, 1 x 100 Mbps Fiber Port, Multi-mode 2km, SC Interface, Industrial Temperature -40°C to 75°C, Power Input 12 - 48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, ST Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC
