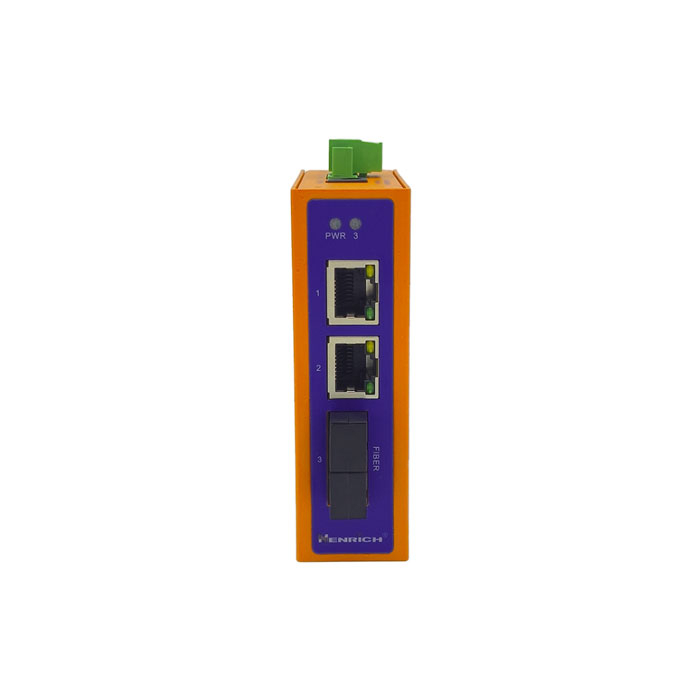

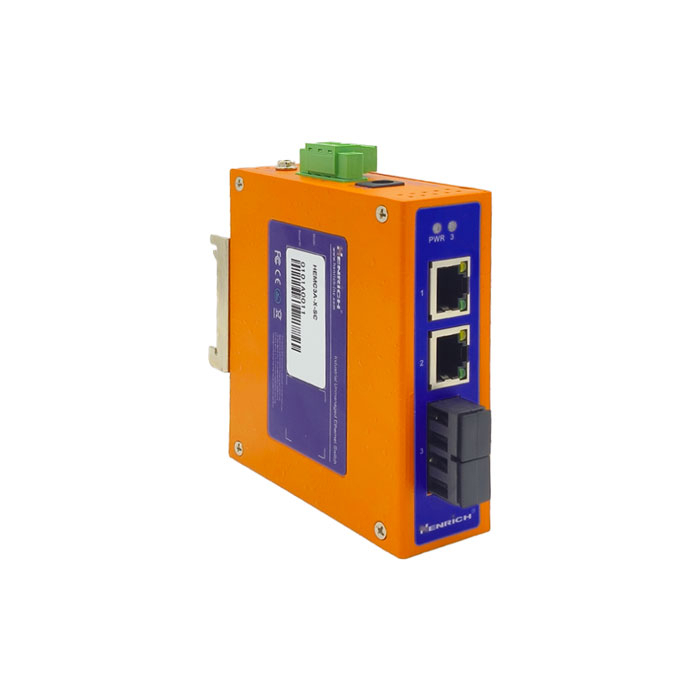

Henrich HEMC3A-X-SC Industrial 10/100BaseT(X)-to-100BaseFX Media Converter
Manufacturer Part Number: HEMC3A-X-SC
Brand: Henrich
$ 55.99$ 184.00
- 2 × 10/100BaseT(X) Port and 1 × 100BaseFX Port
- Multi-mode SC Fiber Connector
- Operating Temperature: -40°C to 75°C
- Power Input: 12–48 VDC with Reverse Polarity Protection
- Housing & Mounting: IP30-rated metal enclosure, DIN-rail mounting
See our Shipping Policy for delivery regions and fees
5 Available
The HEMC3A/B-X series industrial media converters provide industrial-grade conversion between 10/100BaseT(X) and 100BaseFX (using SC/ST connectors). Featuring strengthened EMC protection, these converters are engineered for harsh industrial environments and comply with both FCC and CE standards.
The series offers two operating temperature ranges: a standard -10°C to 60°C and an extended -40°C to 75°C version. Both multi-mode and single-mode formats are available for SC and ST fiber connections to suit various applications. Additionally, the units feature integrated reverse polarity protection for enhanced reliability.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 Connector) | 2-port, Full/Half-duplex Mode; Auto MDI/MDI-X adaptive; Auto Negotiation Speed |
| 100BaseFX Port | 1-port, SC Multi-mode |
| Standards | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |

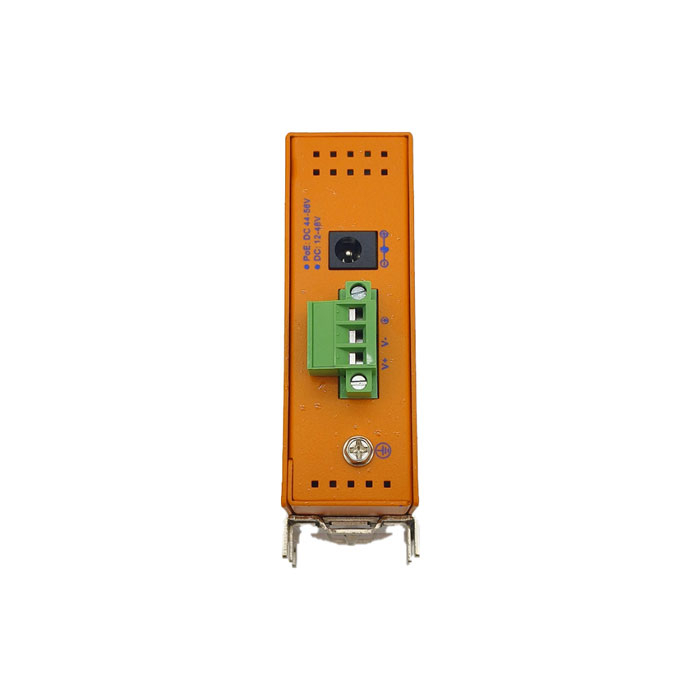

| Power Connector | 1 × DC Socket, 1 × Phoenix Terminal, with built-in Reverse Polarity Protection |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 2 km | 20 km |
| Center Wavelength | 1310 nm | 1310 nm |
| TX Power | -5 ~ -13 dBm | -5 ~ -15 dBm |
| RX Power | ≥-32 dBm | ≥-32 dBm |
| Transmission Rate | 100 Mbps | 100 Mbps |
Physical Characteristics
| Housing | IP30-rated Metal Enclosure |
| Installation | Din-rail Mounting |
| Dimensions (W × H × D) | 1.2" × 3.9" × 3.5" (30 mm × 98 mm × 88 mm) |
Environmental Limits
| Operating Temperature | -40℃ to 75℃ |
| Storage Temperature | -40℃ to 85℃ |
| Relative Humidity | 5% to 90% (Non-condensing) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | Protection level: IP30, Lightning protection: 6 kV 8/20us IEC61000-4-3 (RS):10 V/m (80 - 1000 MHz) IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000 A/m IEC61000-4-10 (Damped oscillation): 30 A/m, 1 MHz IEC61000-4-12/18 (Shockwave): CM 2.5 kV, DM 1kV IEC61000-4-4(EFT): Power cable: ±4 kV, Data cable: ±2 kV IEC61000-4-16 (Common-mode transmission): 30 V, 300 V, 1s IEC61000-4-2 (ESD): ±8 kV contact discharge, ±15 kV air discharge IEC61000-4-6 (Radio frequency transmission): 10 V(150 kHz - 80 MHz) IEC61000-4-8 (Power frequency magnetic field):100 A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM ±4 kV/ DM ±2 kV, Data cable: ±4 kV |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 years |
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, ST Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100 Mbps Copper Port, 1 x 100 Mbps Fiber Port, Multi-mode 2km, SC Interface, Industrial Temperature -40°C to 75°C, Power Input 12 - 48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2km, ST Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC
Din-rail Media Converter, 2 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC
