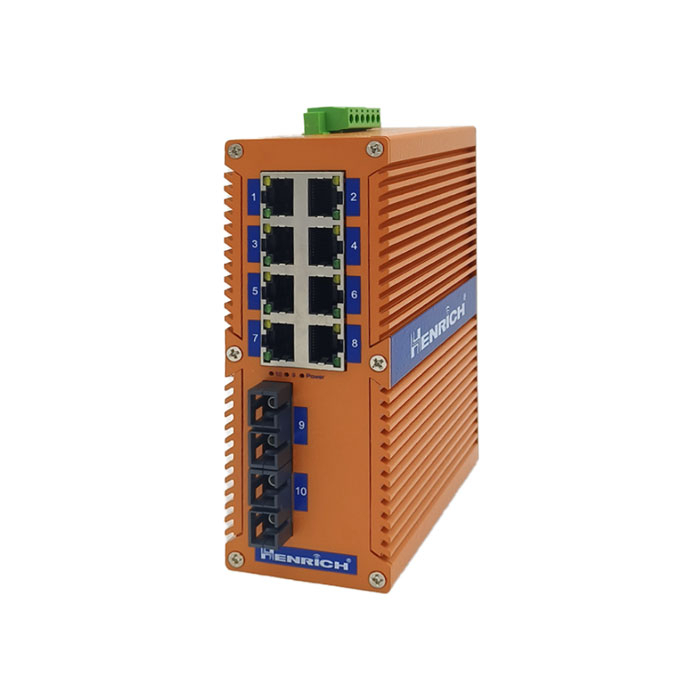

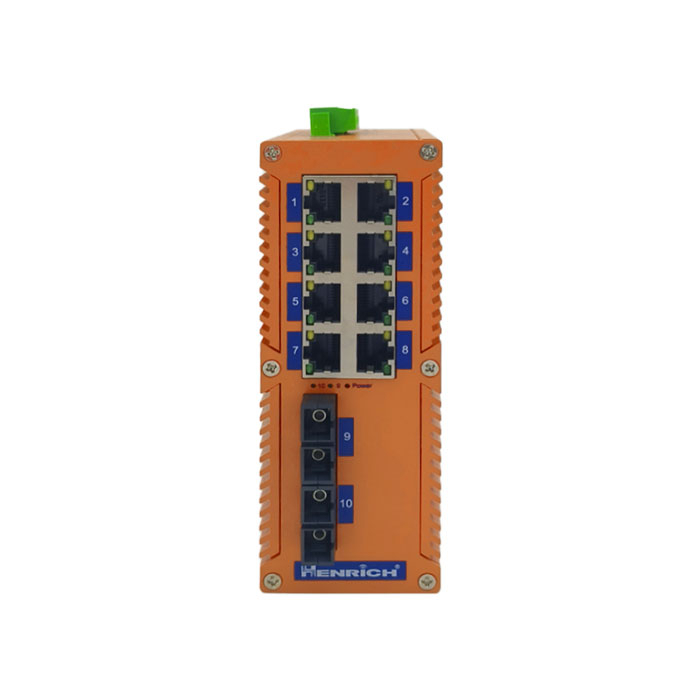

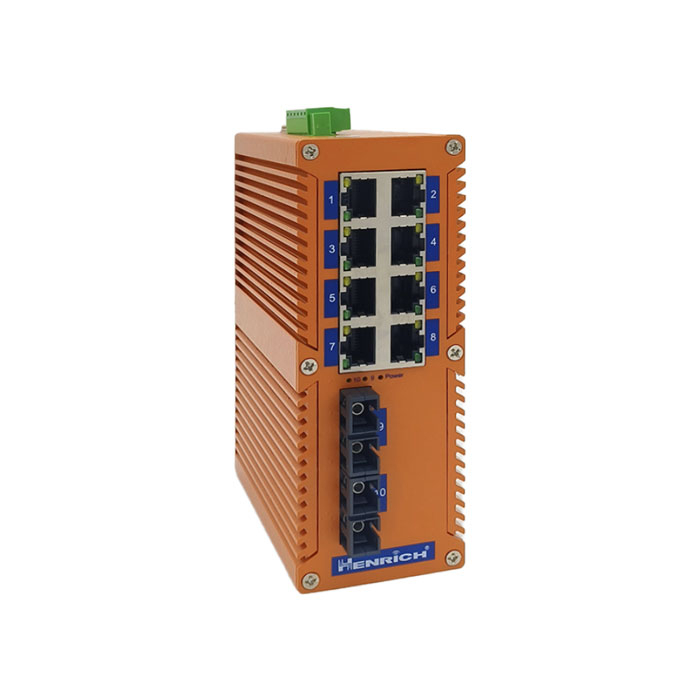

Henrich HES10A-Z-2GSSC 10-port Din-rail Unmanaged Ethernet Switch
Manufacturer Part Number: HES10A-Z-2GSSC
Brand: Henrich
$ 419.00
- 8 × 10/100M Copper Ports and 2 x 1000M Optical Fiber Ports (Single-mode SC Connectors)
- 2 Gigabit Uplinks for High-bandwidth Data Aggregation
- -40°C to 75°C Operating Temperature Available
- DC 12-52V Redundant Dual Power Inputs
- IP40-rated Metal Housing
- Lightning Surge Protection (Power Supply): 5000A (8/20μs)
See our Shipping Policy for delivery regions and fees
3 Available
The HES10B/A-Z series of industrial Ethernet switches have eight 10/100M copper ports and two 1000M optical fiber ports (SC/ST/SFP connectors), which are ideal for applications that require high-bandwidth data convergence. This series switches have 12-52 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability and the protection for lightning surge is up to 8KV. This series has standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 Connector) | 8 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| 1000Base-SX/LX Port or 1000BaseSFP | 2 (Single-mode SC Connector) |
| Standards | IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x; IEEE802.3z |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 1km | 20km |
| Center Wavelength | 1310 nm | 1310 nm |
| TX Power | ≥-12 dBm | ≥-10 dBm |
| RX Power | ≤-24 dBm | ≤-24 dBm |
| Transmission Rate | 1.25 Gbps | 1.25 Gbps |
Switch Properties
| Processing Type | Store and forward |
| MAC Table Size | 8k |
| Packet Buffer Size | 2 Mbit |
Power Parameters
| Input Voltage | DC 12-52 V Redundant Dual Power Inputs |
| Power Consumption | < 8W |
| Power Connector Type | Phoenix Terminal |
| Reverse Polarity Protection | Supported |
| Overload Current 4.0A Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP40 Rating |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 2.1" × 5.8" × 4.1" (53.5mm ×148 mm × 103 mm) |
Environmental Limits
| Working Temperature | -40℃ ～ 75℃ |
| Storage Temperature | -40℃ ～ 80℃ |
| Relative Humidity | 5% to 95% (No Condensation) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3, EN61000-4-16 (Common-mode Transmission) Level 3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 years |
Din-rail Unmanaged, 8 x 100 Mbps Copper Port, 2 x 1000 Mbps Fiber Port, Multi-Mode 1KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100 Mbps Copper Port, 2 x 1000 Mbps Fiber Port, SFP Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100 Mbps Copper Port, 2 x 1000 Mbps Fiber Port, Multi-Mode 1KM, SC Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, ST Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100 Mbps Copper Port, 2 x 1000 Mbps Fiber Port, Single-mode 20 KM, SC Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
Din-rail Unmanaged, 8 x 100Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
