Predision HES12GLMA-T-4XGSFP 12-port (4x10Gbps/8xGbps)10 Gigabit Layer 3 Industrial Managed Ethernet Switch

Manufacturer Part Number: HES12GLMA-T-4XGSFP

Brand: Predision

$ 3603.00

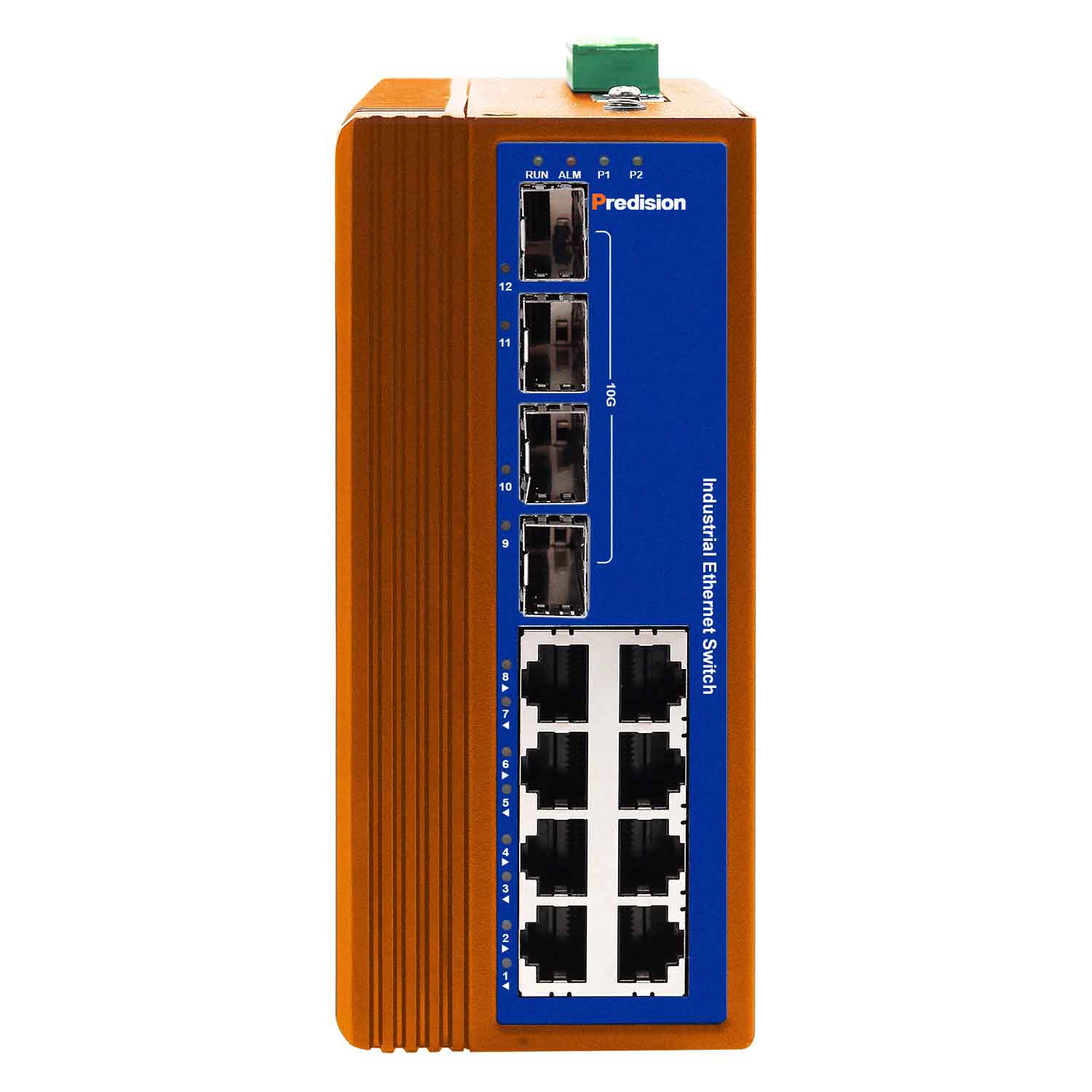

Supports 4 x 10Gbps SFP+ Port and 8 x Gigabit Copper Port
10GBase-R SFP Interface Supports Web Optional 1000Base-X, 10GBase-R Mode Type Setting
Supports PIM-SM, IGMP Snooping to Filter Multicast Packets
IEEE 802.1Q VLAN Support for Easy Network Planning
Supports QoS with 8 Queue Mapping to Increase Network Stability
Supports Ring, ERPS, STP/RSTP/MSTP Networking Redundancy to prevent Broadcast Storm
Supports SNMPv1/v2c/v3 to Ensure Network Security Management
Supports Link Aggregation (Static Convergence/LACP) to Optimize Network Bandwidth
Supports Access Control List (ACL IPV4/ IPV6) to Enhance Flexibility and Network Management Security
Supports Port Mirroring Function for Online Debugging
Supports Port Speed limit\ Broadcast Storm Suppression\ Multicast Storm Suppression\ Unknown Unicast Storm Suppression to ensure network stability
Supports Layer 3 Switching Function (Static route/RIP/OSPF/VRRP)

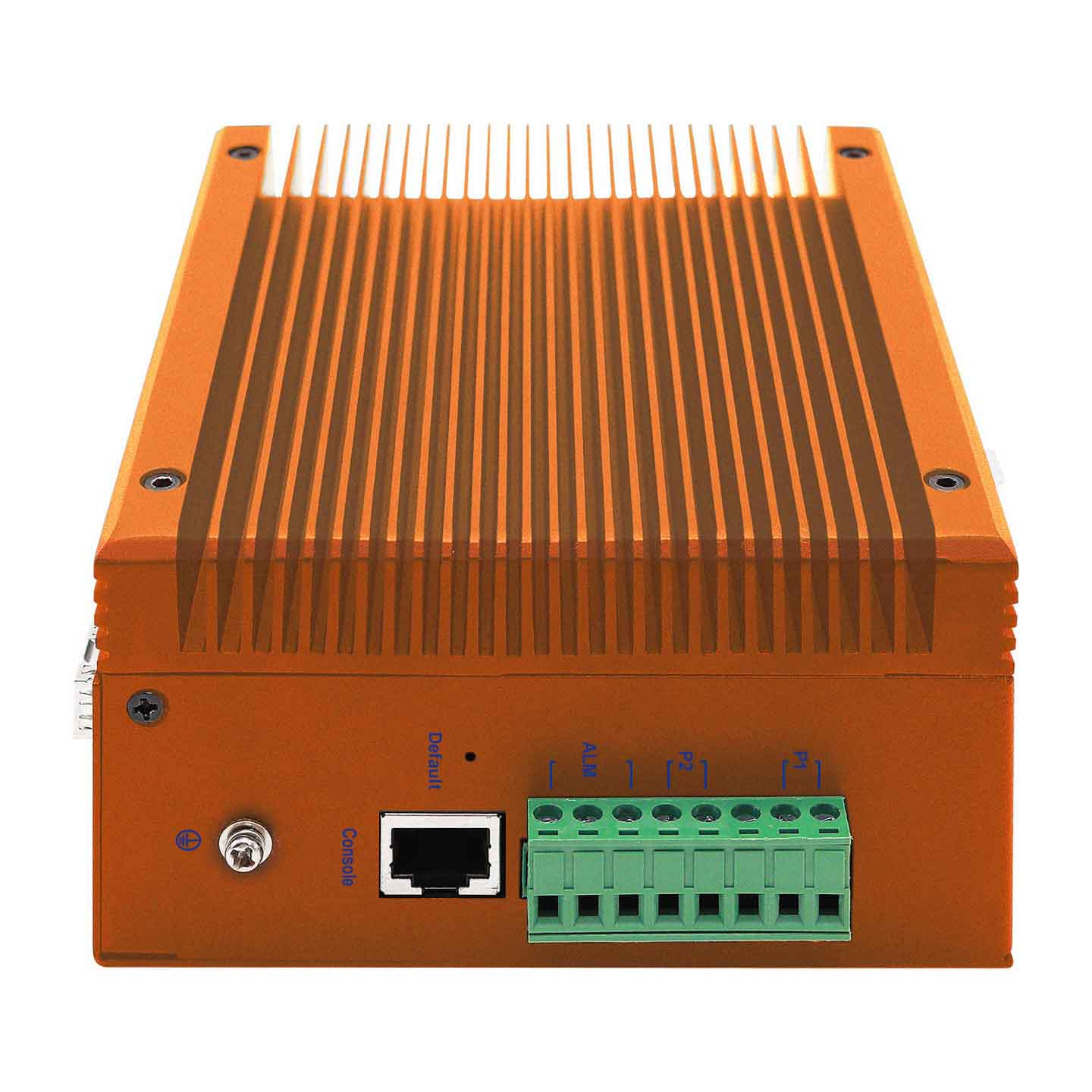

Supports Power, Port Abnormal Status Relay Output Alarm Function
Supports Wide Working Temperature: -40℃ to 75°C

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HES12GLMA-T-4XGSFP is a 12-port 10 Gigabit Layer 3 Managed Ethernet Switch. It provides 8 gigabit copper ports plus 4 10Gbps SFP+ Interfaces, not only increases bandwidth and improves network data communication, but also is very suitable for large-scale industrial network applications.
This product supports multiple Layer 2 software features (Port mirroring, VLAN, Port aggregation, IGMP Snooping, QoS, STP/ RSTP/ MSTP etc.) and basic IPv4/IPv6 Layer 3 routing protocols (static routing/RIP/OSPF/VRRP), provides users with comprehensive solutions.It provides more options for building large-scale local area networks in industrial applications such as factory automation, intelligent transportation and video surveillance.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)	8 (Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed)
1000/10000BaseSFP+ Ports	4 (Auto Negotiation Speed)
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE8O2.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae

Ethernet Software Features

Industrial Protocols	ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/ MSTP, LLDP, IGMP-Snooping, SNMPv1/v2c/v3, DHCP Server, NTP, SSH, IPV6, LACP, VLAN, ERPS, RMON, UDLD
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

Power, Run and Alarm Indicators

Power Parameters

Input Voltage	12/24/48 VDC (10.8~52.8 VDC)
Power Consumption	Max. 650 mA @ 24V

Switching Performance

Transmission Mode	Store and Forward
MAC Table Size	16K
Packet Buffer Size	12Mb
Backplane Bandwidth	96G
Max. Frame Length	12KB
Host Unicast Routing	6K (IPv4), 2K (IPv6)
Segment Unicast Routing	512 (IPv4), 128 (IPv6)

Physical Characteristics

IP Rating	IP40
Dimension	150 x 64 x 120 mm
Weight	1300 g
Installation	DIN-Rail Mounted or Wall-Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32

Warranty

Warranty Period

5 Years

HES12GLMA-T-4XGSFP

Layer 3 Managed DIN-Rail Mounted or Wall-Mounted, 8 x 1000Mbps Copper Port, 4 x 10Gbps Fiber Port, SFP Interface, Industrial Temperature -40 - 75°C, Power Supply 12/24/48 VDC (10.8-52.8 VDC)

Manuals ： Predision_Managed_Ethernet_Switch_T-Series_User_Manual_EN.pdf

Datasheet ： Predision_Switch_HES12GLMA-T-4XGSFP_DS_EN.pdf

LineCard： Predision_Line_Card_Industrial_Ethernet.pdf
