Name: Henrich HES5GB-Y-ST 5-port Full Gigabit Din-rail Unmanaged Ethernet Switch
Brand: Henrich
Price: 284.00 USD
Availability: InStock

account&orders

Home

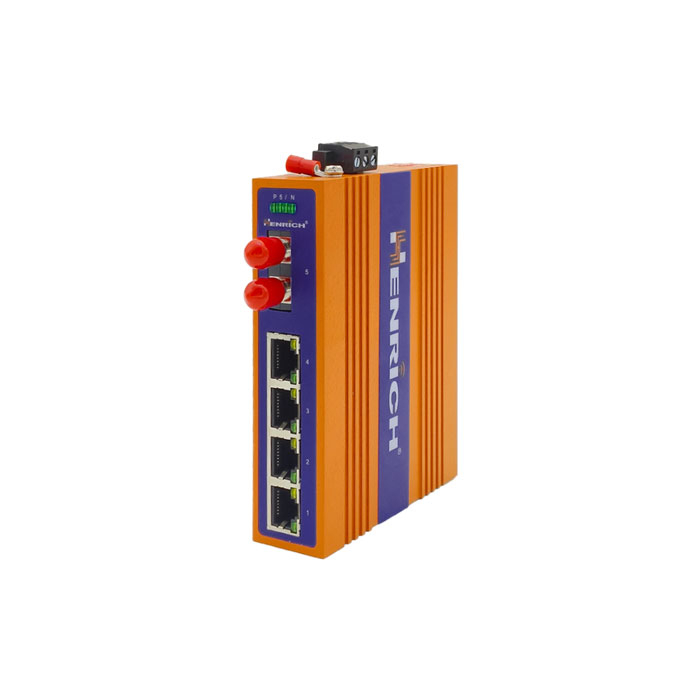

Henrich HES5GB-Y-ST 5-port Full Gigabit Din-rail Unmanaged Ethernet Switch 1

Henrich HES5GB-Y-ST 5-port Full Gigabit Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES5GB-Y-ST

Brand: Henrich

$ 284.00

4×10/100/1000BaseT(X) Port (RJ45 Connector)
1×1000BaseFX Port (Multiple-mode ST Connector)
Supports 10KB Jumbo Frames
DIP Switches for Enabling or Disabling Broadcast Storm Protection and Port Isolation
12 ~ 58 VDC Redundant Dual Power Inputs
IP40 Metal Housing, Fan-less Design
High-level ESD: Contact: 8 KV Air: 15 KV
-10°C to 60°C Operating Temperature

See our Shipping Policy for delivery regions and fees

4 Available

The HES5GB-Y series, 4 or 5 full gigabit copper ports and 1 optical fiber port industrial Ethernet switches, support IEEE802.3u, IEEE802.3x and IEEE802.3z with 10/100/1000BaseT(X) & 1000Base-SX/LX, full/half duplex, MDI/MDI-X auto-sensing. This series switches are rated to operate at temperatures ranging from -10°C to 60°C. The fanless design, wide operating temperature, high-level ESD provide the products with high performance of resistance to high and low temperature, lightening protection and reliability and safety of industrial network. In addition, the HES5GB-Y switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)	4 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
1000BaseFX Ports	1 (Multi-mode ST Connector)
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

Optical Fiber

Mode	Multi-mode	Single-mode
Transmission Distance	550m	20km
Center Wavelength	1310 nm	1310 nm
TX Power	≥-12 dBm	≥-10 dBm
RX Power	≤-24 dBm	≤-24 dBm
Transmission Rate	1000 Mbps	1000 Mbps

DIP Switch Configuration

LFP (PoE Switches Only)	Enabling or Disabling Remote PD Reset Function
LGY (PoE Switches Only)	Enabling or Disabling the Function of Power Supply for Non-standard PD Device
VLAN	Enabling or Disabling Port Isolation
BSR	Enabling or Disabling Broadcast Storm Control

Switch Properties

Processing Type	Store and forward
Jumbo Frame Size	10 KB
MAC Table Size	8K
Packet Buffer Size	1 Mbit

Power Parameters

Input Voltage	DC 12-58V Redundant Dual Power Inputs
Power Consumption	< 5W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.22" × 4.65" × 3.58" （31mm ×118mm × 91mm）
Weight	0.88lb (400g)

Environmental Limits

Working Temperature	-30℃ ～ 75℃
Storage Temperature	-30℃ ～ 75℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 4, Contact: 8kV; Air: 15kV EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3, 4KV/2KV, 8/20us (Surge Protection of Power) EN61000-4-5 (Surge) Level 3, 4KV/2KV, 10/700us (Surge Protection of Ethernet Port) EN61000-4-6 (CS) Level 3 EN61000-4-8 (PMS) Level 3 EN61000-4-16 Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty

5 Years

HES5GB-Y

Din-rail Unmanaged, 5 x 1000Mbps Copper Port, Industrial Temperature -10 ~60°C, Power Supply 12 ~ 58 VDC

HES5GB-Y-SC

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES5GB-Y-ST

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES5GB-Y-SFP

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES5GB-Y-SSC

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES5GB-Y-SST

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES8GB-Y

Din-rail Unmanaged, 8 x 1000Mbps Copper Port, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC

Datasheet ： Henrich_Switch_HES5GB-Y-ST_DS_EN.pdf

Quick Installation Guide： Henrich_Switch_HES5GB-Y-ST_QIG_EN.pdf

LineCard： Henrich_Line_Card_Industrial_Ethernet.pdf
