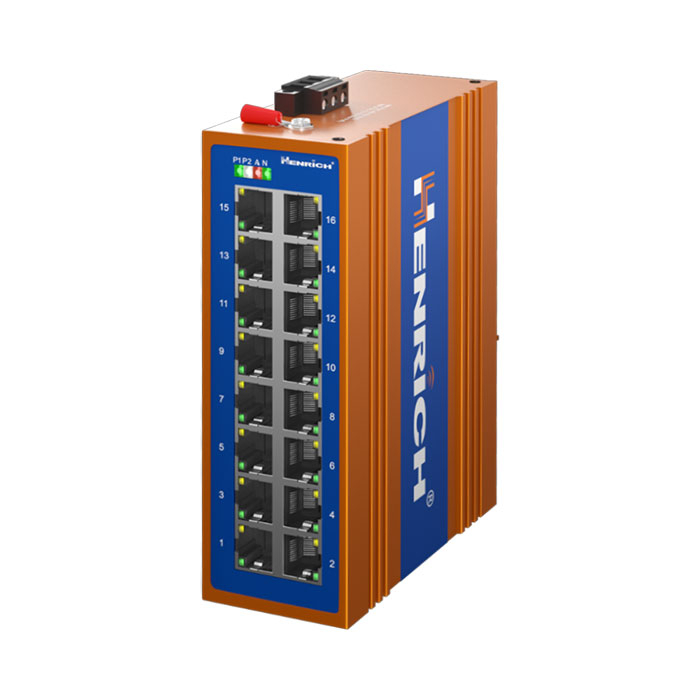

Name: Henrich HES16A-Y 16-port Din-rail Unmanaged Ethernet Switch
Brand: Henrich
Price: 220.00 USD
Availability: OutOfStock

account&orders

Home

Henrich HES16A-Y 16-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES16A-Y

Brand: Henrich

$ 220.00

16×10/100BaseT(X) Port (RJ45 connector)
-40°C to 75°C Operating Temperature
MTBF: More than 100,000 Hours
DC 12-58V Redundant Dual Power Inputs
IP40 Metal Housing, Fan-less Design
High-level ESD: Contact: 8kV
Air: 15kV

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

Designed to fit Industrial and Commercial applications, the HES16B/A-Y series is plug and play Ethernet switches with IP40 DIN rail enclosure and convenient LEDs for Power (Link / Activity for each port). This series switches are rated to operate at temperatures ranging from -40°C to 75°C. The fanless design, wide operating temperature provide the products with high performance of resistance to high and low temperature, lightening protection and reliability and safety of industrial network.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	16 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Switch Properties

Processing Type	Store and forward
MAC Table Size	8k
Packet Buffer Size	2Mbits

Power Parameters

Input Voltage	12 ~ 58VDC Redundant Dual Power Inputs
Power Consumption	< 10W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.81" × 5.63" × 4.09" (46mm ×143 mm × 104 mm)
Weight	1.21lb (550g)

Environmental Limits

Working Temperature	-40℃ ～ 75℃
Storage Temperature	-40℃ ～ 75℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part 15 Subpart B Class A, EN 55032 Class A
EMS	EN61000-4-2 Level 4, Contact: 8 kV; Air: 15 kV (ESD) EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 Level 3 (4KV/2KV）8/20us (Surge Protection of Power) EN61000-4-5 Level 3 (4KV/2KV）10/700us (Surge Protection of Ethernet Port) EN61000-4-6 (CS) Level 3 EN61000-4-8 (PMS) Level 3 EN61000-4-16 Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
