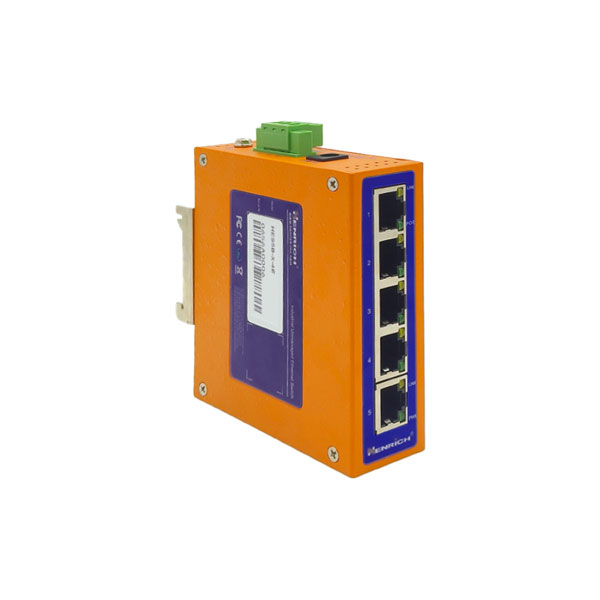

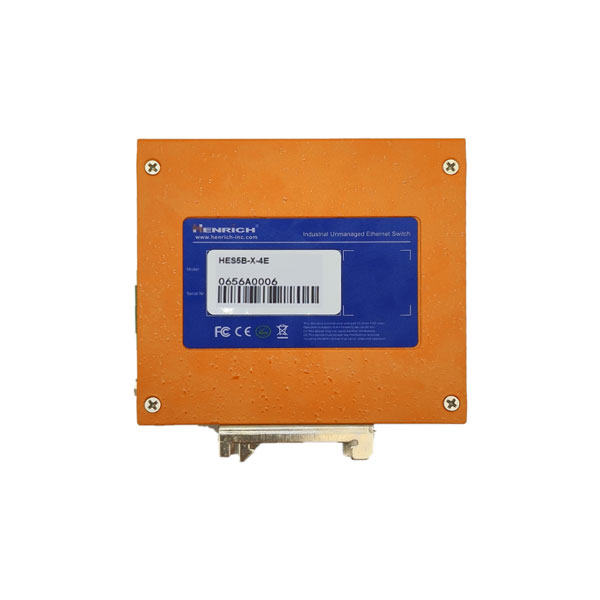

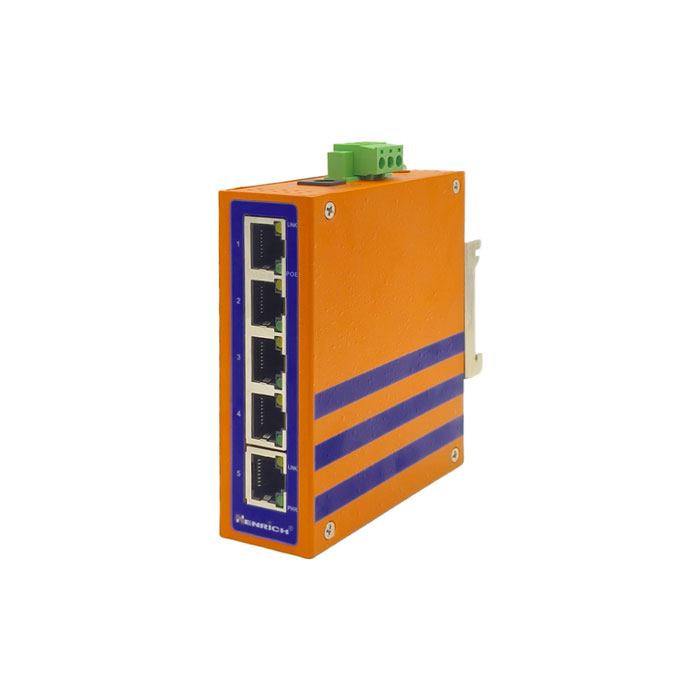

Henrich HES5B-X-4E 5-port Din-rail Unmanaged PoE Ethernet Switch
Manufacturer Part Number: HES5B-X-4E
Brand: Henrich
$ 228.00

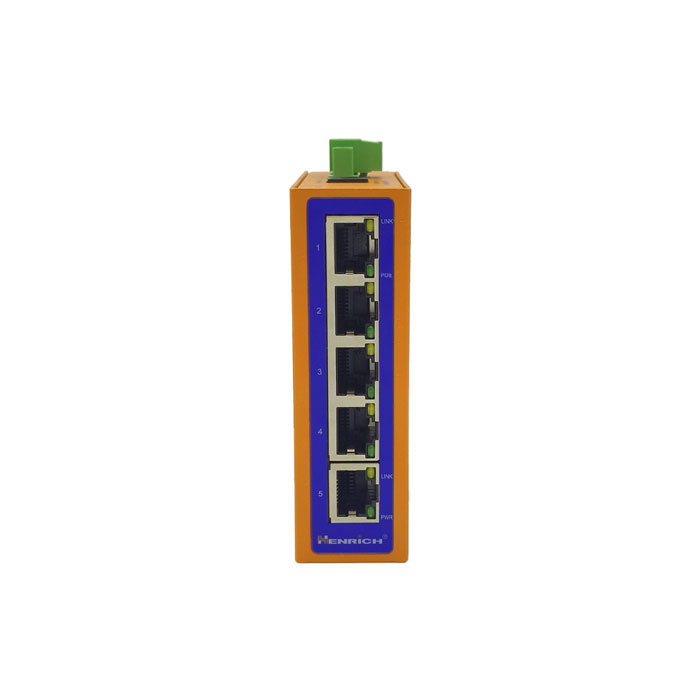

- 4 × 10/100BaseT(X) PoE+ Ports, 1 x 10/100BaseT(X) Port
- IEEE 802.3af/at PoE Standard, up to 30W Output per PoE+ Port
- DC 44-56V Power Supply with Reverse Polarity Protection
- Smart PoE power supply: power will be supplied to the high priority level port first when the power budget is insufficient and overload operation of the device will be avoided
- -10°C to 60°C Operating Temperature
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: June 20, 2026 (UTC-4)
The HES5B/5A-X series switches are smart, 5-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the HES5B/5A-X series switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
Ethernet Interface
| 10/100BaseT(X) Port (RJ45 connector) or 100BaseFX Port | RJ45 Port: 1 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 4 Full/Half-duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| Standards | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x |
| PoE Supply Pin | 1/2(+) 3/6 (-) |

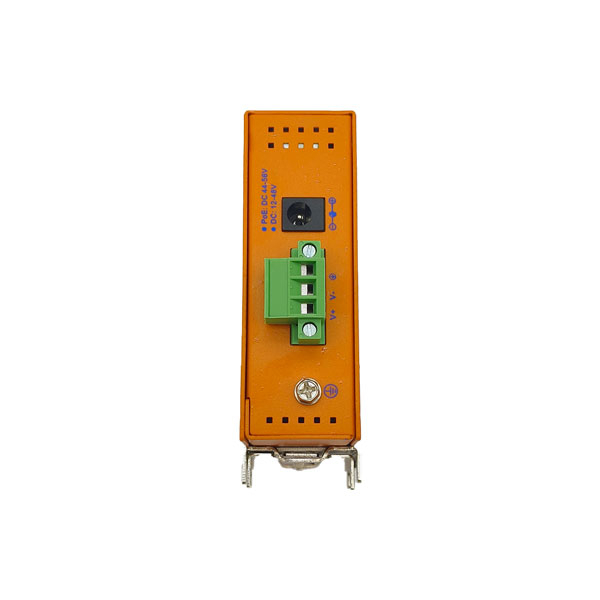

| Power Connector | DC Socket or Phoenix Terminal, with Built-in Reverse Polarity Protection |
Switch Properties
| Processing Type | Store and Forward (Full Wire Speed) |
| MAC Table Size | 2k |
| Packet Buffer Size | 512k |
Power Parameters
| Input Voltage | DC 44-56V |
| Operating Voltage | DC 44-56V |
| Power Budget | Standby: < 4W, Full load: af < 60W, at < 120W |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP30 Design |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 1.2" × 3.9" × 3.5" (30mm × 98 mm × 88 mm) |
Environmental Limits
| Working Temperature | -10℃ to 60℃ |
| Storage Temperature | -40℃ to 85℃ |
| Relative Humidity | 5% to 90% (No Condensation) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Certification | CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
Warranty
| Warranty | 5 Years |
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Copper Port, Industrial Temperature -10~60°C, Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 1km, SC Interface, Industrial Temperature -10~60°C, Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -10~60°C，Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 1km, ST Interface, Industrial Temperature -10~60°C，Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -10~60°C, Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Copper Port, Industrial Temperature -40~75°C, Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 1km, SC Interface, Industrial Temperature -40~75°C，Power Input 44-56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -40 ~ 75°C, Power Input 44 - 56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 1km, ST Interface, Industrial Temperature -40 - 75°C，Power Input 44 - 56 VDC
Din-rail Unmanaged, 4 x 100Mbps PoE Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -40~75°C, Power Input 44-56 VDC
