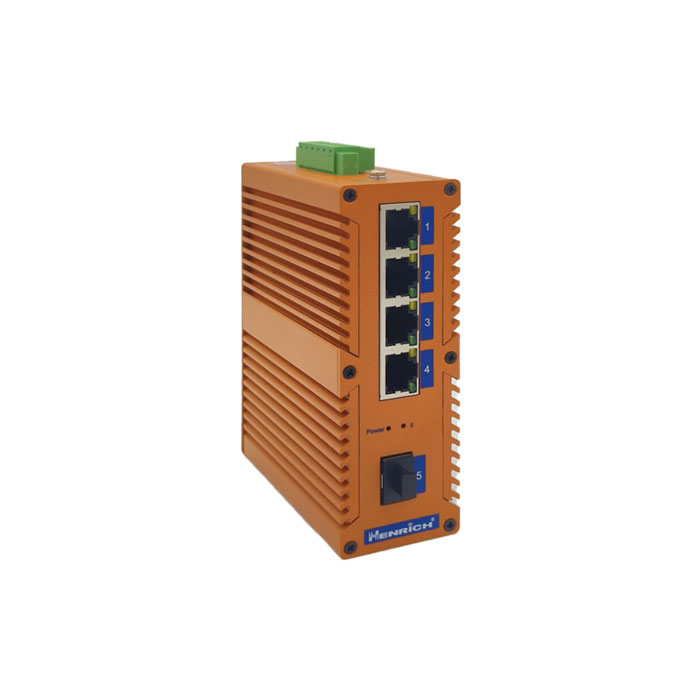

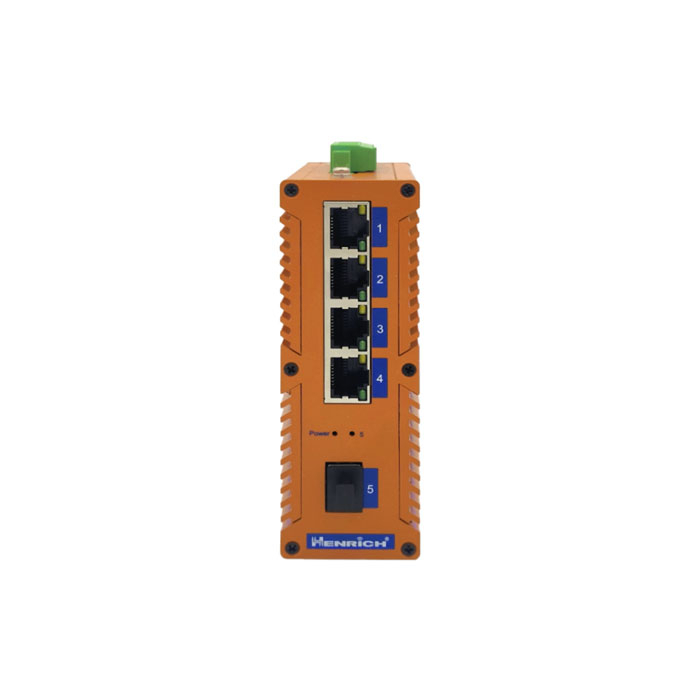

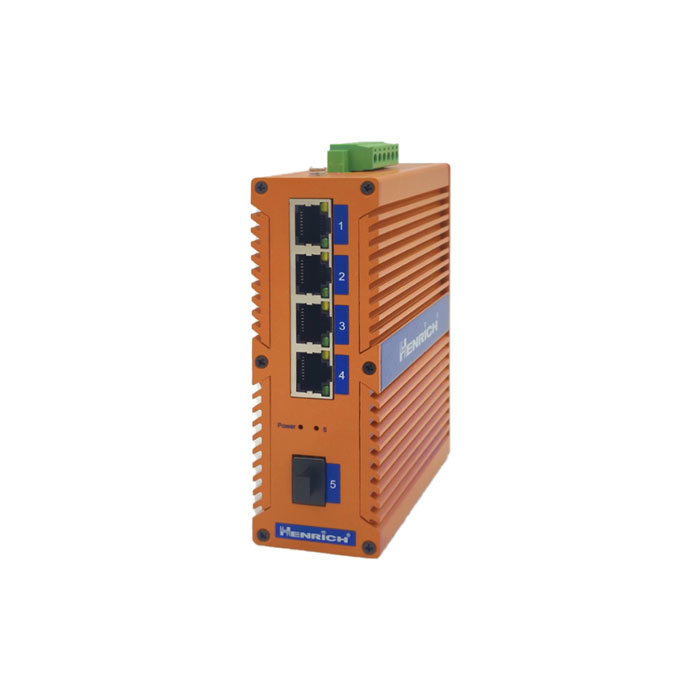

Henrich HES5A-Z-SFP 5-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES5A-Z-SFP

Brand: Henrich

$ 174.00

4 × 10/100BaseT(X) (RJ45 connector) 1 × 100BaseSFP
-40°C to 75°C Operating Temperature
MTBF: More than 300,000 Hours
DC 12-52V Redundant Dual Power Inputs
Lightning Surge Protection (Power Supply): 5000 A (8/20 μs)

See our Shipping Policy for delivery regions and fees

11 Available

Designed to fit Industrial and Commercial applications, the HES5A-Z series is plug and play Ethernet switches with IP40 DIN rail enclosure and convenient LEDs for Power (Link / Activity for each port). This series switches are rated to operate at temperatures ranging from -40°C to 75°C. The fanless design, wide operating temperature provide the products with high performance of resistance to high and low temperature, lightening protection and reliability and safety of industrial network.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	4 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
100BaseSFP Ports	1
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Optical Fiber

Mode	Multi-mode	Single-mode
Transmission Distance	2km	20km
Center Wavelength	1310 nm	1310 nm
TX Power	≥-18 dBm	≥-14 dBm
RX Power	≤-34 dBm	≤-33 dBm
Transmission Rate	100 Mbps	100 Mbps

Switch Properties

Processing Type	Store and forward
MAC Table Size	2k
Packet Buffer Size	1 Mbit

Power Parameters

Input Voltage	DC 12-52 V Redundant Dual Power Inputs
Power Consumption	< 3W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported
Overload Current 4.0A Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.6" × 4.7" × 3.6" (40.5mm ×120 mm × 91 mm)

Environmental Limits

Working Temperature	-40℃ ～ 75℃
Storage Temperature	-40℃ ～ 80℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3, EN61000-4-16 (Common-mode Transmission) Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty

5 years

HES5A-Z

Din-rail Unmanaged, 5 x 100Mbps Copper Port, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

HES5A-Z-SC

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, SC Interface, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

HES5A-Z-ST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, ST Interface, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

HES5A-Z-SFP

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, SFP Interface, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

HES5A-Z-SSC

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

HES5A-Z-SST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
