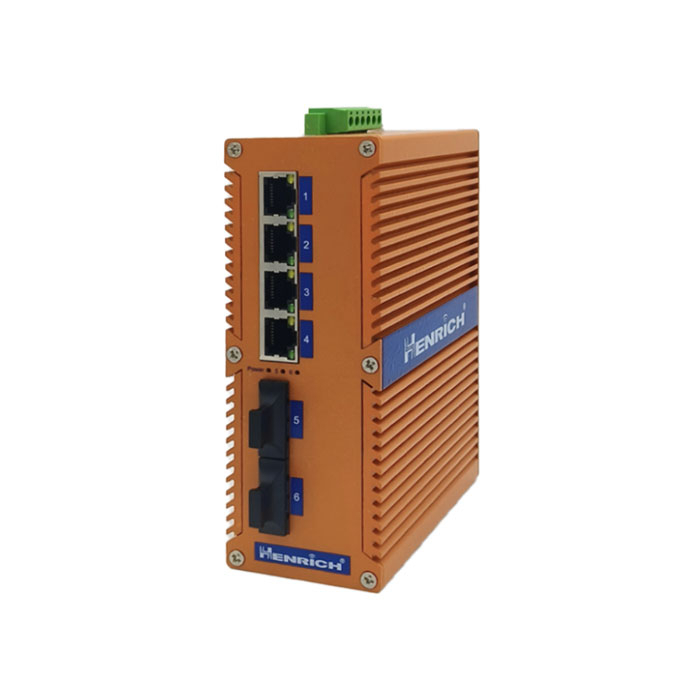

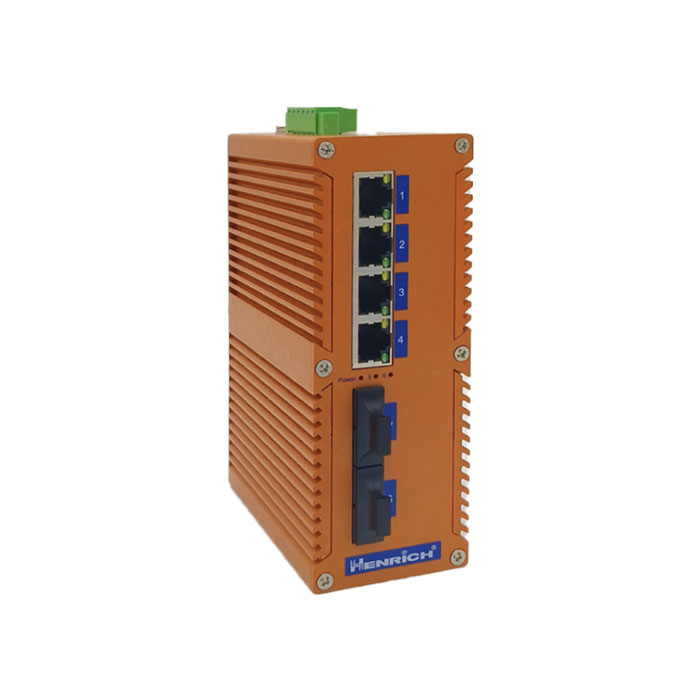

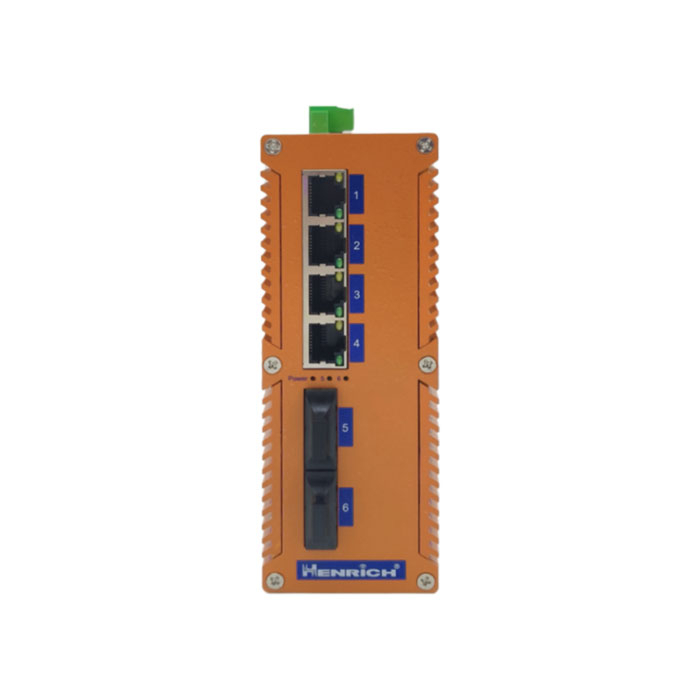

Name: Henrich HES6A-Z-2SSC 6-port (with 2 Optical Fiber Ports) Din-rail Unmanaged Ethernet Switch
Brand: Henrich
Price: 301.00 USD
Availability: InStock

account&orders

Home

Henrich HES6A-Z-2SSC 6-port (with 2 Optical Fiber Ports) Din-rail Unmanaged Ethernet Switch 1

Henrich HES6A-Z-2SSC 6-port (with 2 Optical Fiber Ports) Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES6A-Z-2SSC

Brand: Henrich

$ 301.00

4 × 10/100BaseT(X) (RJ45 Connector)
2 × 100BaseFX (Single-mode, SC Connector)
-40°C to 75°C Working Temperature
MTBF: More than 300,000 Hours
DC 12-52V Redundant Dual Power Inputs
Lightning Surge Protection (Power Supply): 5000 A (8/20 μs)

See our Shipping Policy for delivery regions and fees

4 Available

Designed to fit Industrial and Commercial applications, the HES6B/A-Z series is plug and play Ethernet switches with IP40 DIN rail enclosure and convenient LEDs for Power (Link / Activity for each port). The fanless design, wide operating temperature, provide the products with high performance of resistance to high and low temperature, lightening protection and reliability and safety of industrial network. Multi-mode fiber models extend range up to 2 km. Single-mode fiber models extend range up to 20 km.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	4 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
100BaseFX Ports	2 (Single-mode SC Connector)
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x
LED Indicators	Power, Link / Activity for Each Port

Optical Fiber

Mode	Multi-mode	Single-mode
Transmission Distance	2 km	20 km
Center Wavelength	1310 nm	1310 nm
TX Power	≥-18 dBm	≥-14 dBm
RX Power	≤-34 dBm	≤-33 dBm
Transmission Rate	100 Mbps	100 Mbps

Switch Properties

Processing Type	Store and Forward
MAC Table Size	2k
Packet Buffer Size	1Mbit

Power Parameters

Input Voltage	DC 12-52 V Redundant Dual Power Inputs
Power Consumption	< 5W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported
Overload Current 4.0A Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	2.1" × 5.8" × 4.1" (53.5 mm ×148 mm × 103 mm)

Environmental Limits

Working Temperature	-40℃ ～ 75℃
Storage Temperature	-40℃ ～ 85℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3, EN61000-4-16 (Common-mode Transmission) Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty

5 years

HES6A-Z-2SC

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 2 x 100Mbps Fiber Port, Multi-Mode 2KM, SC Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~52 VDC, 148 x 103 x 53.5mm

HES6A-Z-2ST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 2 x 100Mbps Fiber Port, Multi-Mode 2KM, ST Interface, Industrial Temperature -40～75 °C, Power Supply 12~52VDC, 148 x 103 x 53.5mm

HES6A-Z-2SSC

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 2 x 100Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -40℃ to 75℃, Power Supply 12~52 VDC

HES6A-Z-2SST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 2 x 100Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -40℃ to 75℃, Power Supply 12~52VDC
