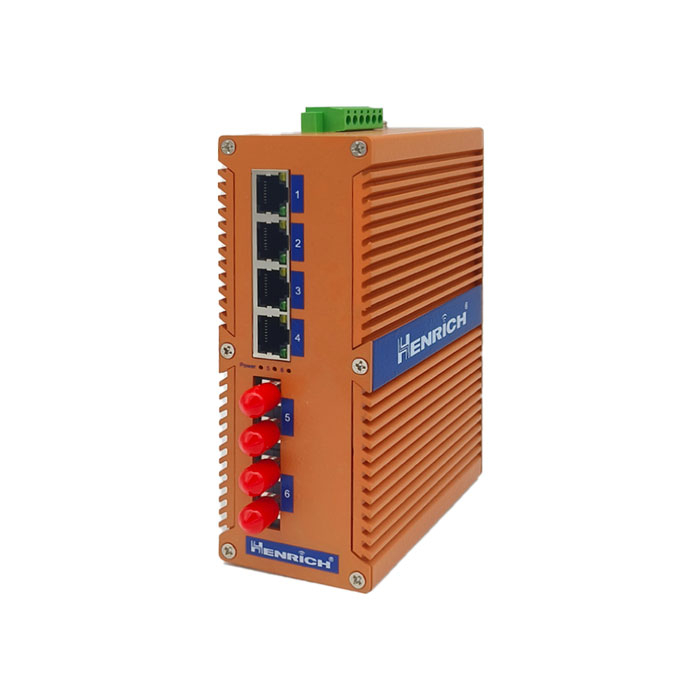

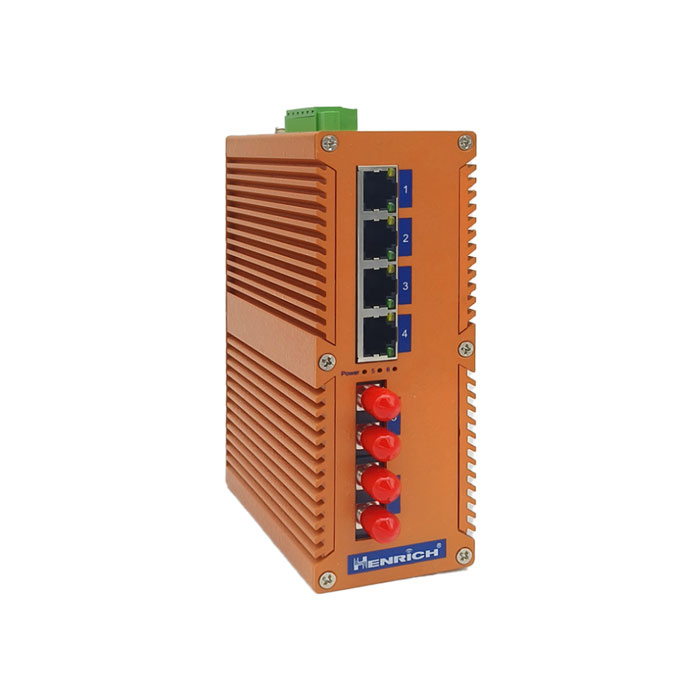

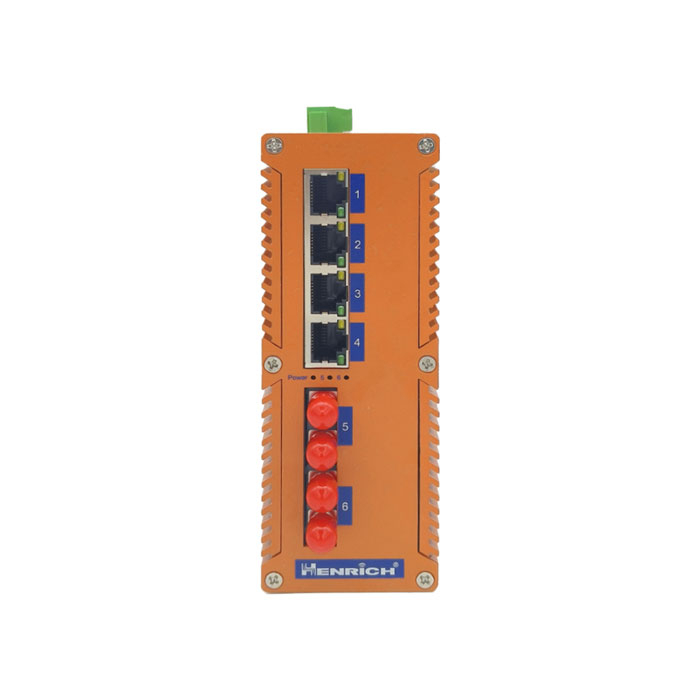

Henrich HES6GB-Z-2ST 6-port (with 2 Optical Fiber Ports) Full Gigabit Din-rail Unmanaged Ethernet Switch
Manufacturer Part Number: HES6GB-Z-2ST
Brand: Henrich
$ 339.00
- 4×10/100/1000BaseT(X) Port (RJ45 Connector)
- 2×1000Base-SX/LX Port (Multi-mode ST Connector)
- Supports 9.2KB Jumbo Frames
- 12 ~ 52 VDC Redundant Dual Power Inputs
- IP40 Metal Housing, Fanless Design
- Lightning Surge Protection (Power Supply): 5000A (8/20μs)
- -40°C to 75°C Operating Temperature Range Available
See our Shipping Policy for delivery regions and fees
1 Available
Designed to fit Industrial and Commercial applications, the HES6GB-Z and HES6GA-Z series are plug and play Ethernet switches with IP40 DIN rail enclosure and convenient LEDs for Power (Link / Activity for each port). HES6GA-Z series switches are rated to operate at temperatures ranging from -40°C to 75°C. lightning surge protection provide the products with high performance of resistance to high and low temperature, reliability and safety of industrial network.
Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 Connector) | 4 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| 1000Base-SX/LX Ports | 2 (Multi-mode ST Connector) |
| Standards | IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 1km | 20km |
| Center Wavelength | 1310nm | 1310nm |
| TX Power | ≥-12dBm | ≥-10dBm |
| RX Power | ≤-24dBm | ≤-24dBm |
| Transmission Rate | 1000Mbps | 1000Mbps |
Switch Properties
| Processing Type | Store and Forward |
| Jumbo Frame Size | 9.2KB |
| MAC Table Size | 2k |
| Packet Buffer Size | 1.2Mbit |
Power Parameters
| Input Voltage | DC 12-52 V Redundant Dual Power Inputs |
| Power Consumption | < 5W |
| Power Connector Type | Phoenix Terminal |
| Reverse Polarity Protection | Supported |
| Overload Current 4.0A Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP40 Rating |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 2.1" × 5.8" × 4.1" (53.5mm ×148 mm × 103 mm) |
Environmental Limits
| Working Temperature | -10℃ ～ 60℃ |
| Storage Temperature | -40℃ ～ 85℃ |
| Relative Humidity | 5% to 95% (No Condensation) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3, EN61000-4-16 (Common-mode Transmission) Level 3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 years |
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, SC Interface, Industrial Temperature -10～60°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, ST Interface, Industrial Temperature -10～60°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -10～60°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10～60°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -10～60°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, SC Interface, Industrial Temperature -40～75 °C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Multi-Mode 1KM, ST Interface, Industrial Temperature -40～75 °C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -40 ~75°C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -40～75 °C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40～75 °C, Power Supply 12~52VDC, 148 x 103 x 53.5mm
