Predision HES26GMA-T-2SFP 26-port Din-rail Gigabit Full Layer 2 Industrial Managed Ethernet Switch 1

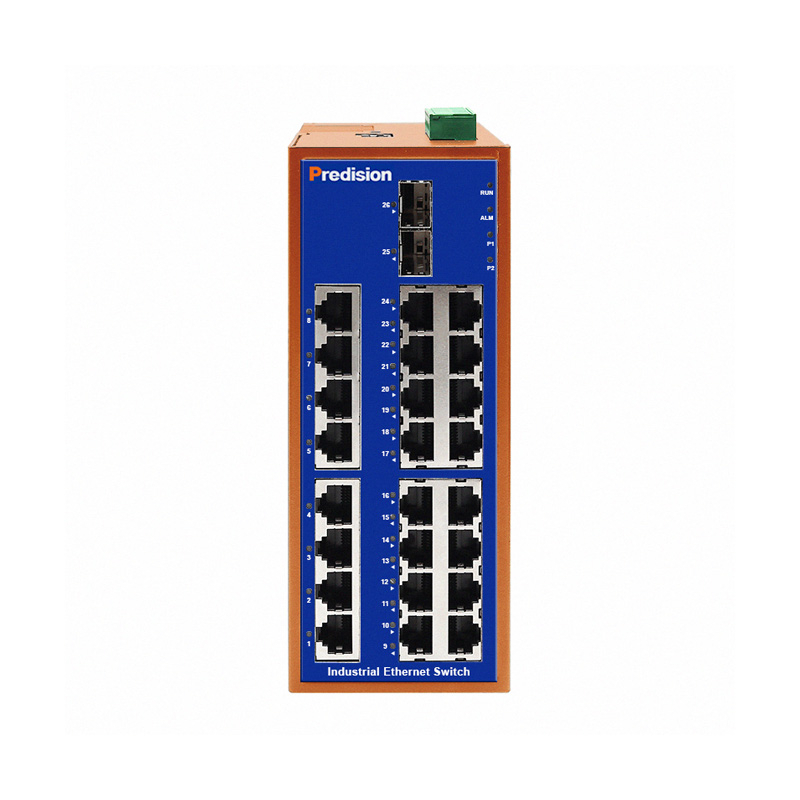

Predision HES26GMA-T-2SFP 26-port Din-rail Gigabit Full Layer 2 Industrial Managed Ethernet Switch

Manufacturer Part Number: HES26GMA-T-2SFP

Brand: Predision

$ 2228.00

Supports 24 x 10/100/1000Mbps RJ45 Copper Ports and 2 x 1000Mbps SFP Ports
Supports IGMP Snooping, IEEE 802.1Q VLAN, QoS, STP/RSTP, SNMPv1/v2/v3 and Other Protocols to ensure Safe and Stable Network
Adopts RMON to Improve Network Monitor Forecast Ability
Supports Port Isolation and ACL Function
Supports Trap and RMON
Supports Port Speed Limit and Broadcast Storm Suppression
Supports LLDP, Link Flap, UDLD, DDM
Supports Working Temperature -40℃ to 75℃

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

HES26GMA-T/HES26GMB-T series is industrial managed industrial Ethernet switches. It supports 26 gigabit ports, including 2 Gigabit SFP ports. This series supports supports one console port which provides CL management. It also supports Ethernet Layer 2 protocols required for industrial sites to ensure the stability of the communication network. This series switches adopts a low-power, fanless design to ensure no noise interference, while -40 ~ 75℃ operating temperature and good EMC electromagnetic compatibility performance are ensuring stable operation in harsh industrial environments.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)	24 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
1000BaseFX Ports	2 (SFP Slot)
Standard	IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3z, IEEE8O2.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x

Ethernet Software Features

Industrial Protocols	ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/ MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, UDLD, NTP, RMON, Syslog
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

Power, Network, Run and Alarm Indicators

Power Parameters

Input Voltage	12/24/48 VDC (10.8~52.8 VDC), Redundant Power Inputs
Power Consumption	Max. 650 mA @ 24V

Switching Performance

Forwarding Rate	1,488,095 pps
Transmission Mode	Store and Forward
MAC Table Size	8K
Packet Buffer Size	4.1M
Backplane Bandwidth	52G
Max. frame Length	10KB

Physical Characteristics

IP Rating	IP40
Dimension	177 x 133 x 68 mm
Weight	1600 g
Installation	Din-rail Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	0% ~ 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32

Warranty

Warranty Period

5 Years

HES26GMB-T-2SFP

Din-rail Layer 2 Managed, 24 x 10/100/1000Mbps Copper Port, 2 x 1000Mbps SFP Slot,Industrial Temperature -10 - 60°C, Dual Power Supply 10.8 - 52.8 VDC

HES26GMA-T-2SFP

Din-rail Layer 2 Managed, 24 x 10/100/1000Mbps Copper Port, 2 x 1000Mbps SFP Slot,Industrial Temperature -40 - 75 °C, Dual Power Supply 10.8 - 52.8 VDC

Manuals ： Predision_Managed_Ethernet_Switch_T-Series_User_Manual_EN.pdf

Datasheet ： Predision_Switch_HES26GMA-T-2SFP-DS-EN.pdf

LineCard： Predision_Line_Card_Industrial_Ethernet.pdf
