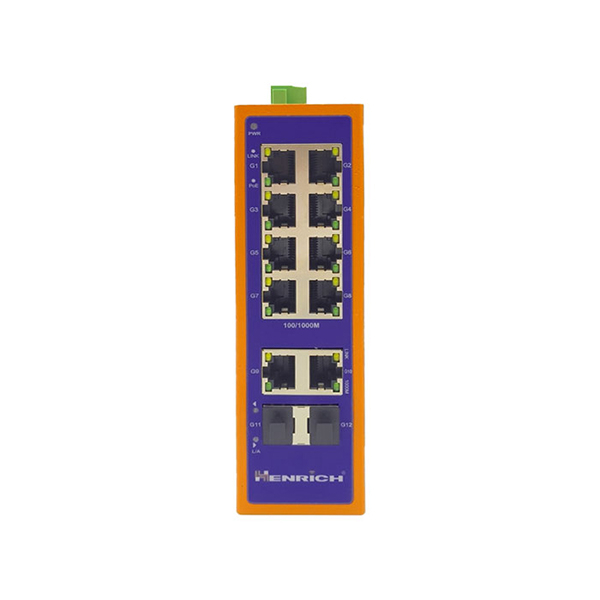

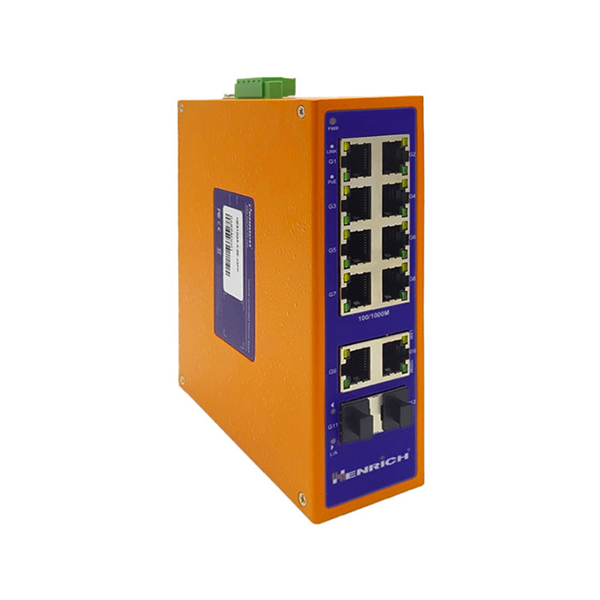

Henrich HES12GB-X-8E-2SFP 12-port Full Gigabit Din-rail Unmanaged PoE Ethernet Switch

Manufacturer Part Number: HES12GB-X-8E-2SFP

Brand: Henrich

$ 768.00

8 × 10/100/1000BaseT(X) PoE+ Ports, 2 x 10/100/1000BaseT(X) Port, 2 x 1000BaseSFP Ports
IEEE 802.3af/at PoE Standard, up to 30W Output per PoE+ Port
Operates with 240 Watts Full PoE+ Loading
Supports 9.2KB Jumbo Frames

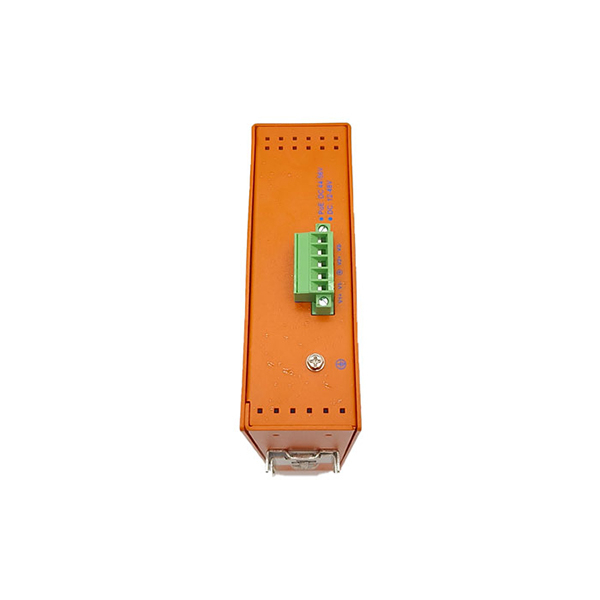

DC 44-56V Redundant Power Supply with Reverse Protection
Smart PoE power supply: power will be supplied to the high priority level port first when the power budget is insufficient and overload operation of the device will be avoided

See our Shipping Policy for delivery regions and fees

3 Available

The HES12GB-X-8E/HES12GA-X-8E switches are smart, 12-port, unmanaged Ethernet switches supporting PoE (Power over Ethernet) on ports 1 to 8. The switches are classified as power source equipment (PSE), and when used in this way, the HES12GB-X-8E/HES12GA-X-8E switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Ethernet Interface

10/100/1000BaseT(X) Port (RJ45 connector)	2 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
1000BaseSFP Port	2
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	8 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z, IEEE 802.3af/at
PoE Supply Pin	1/2(+) 3/6 (-)

Switch Properties

Processing Type	Store and Forward (Full Wire Speed)
MAC Table Size	8K
Packet Buffer Size	4Mbits
Jumbo Frames	9.2KB

Power Requirements

Input Voltage	DC 44-56V Redundant Dual Inputs
Operating Voltage	DC 44-56V
Power Budget	Standby: < 8W, Full load: af < 120W, at < 240W
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP30 Design
Dimensions (Width × Height × Depth)	1.73" × 6.1" × 5.31" (44mm × 155mm × 135mm)
Installation	DIN-rail Mounting

Environment Limits

Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 85°C
Ambient Relative Humidity	5~90% (Non-condensing)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

Warranty Period

5 Years

HES12GB-X-8E-2SFP

Din-rail Unmanaged, 8 x 1000Mbps POE Copper Port, 2 x 1000Mbps POE Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -10~60°C, Power Input 44-56 VDC

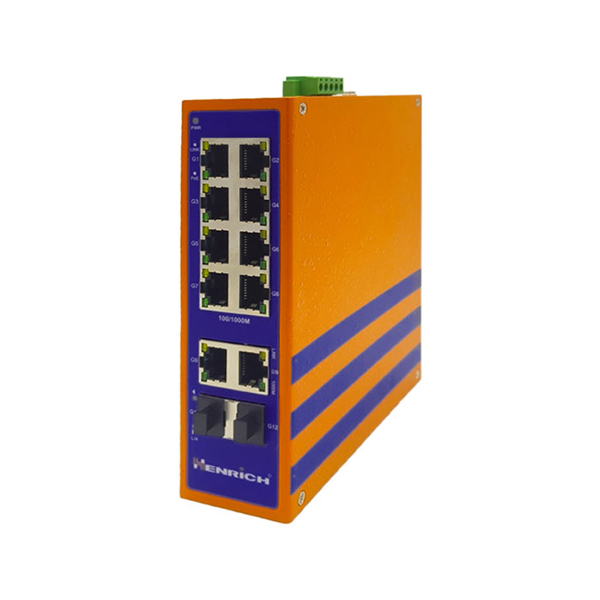

HES12GA-X-8E-2SFP

Din-rail Unmanaged, 8 x 1000Mbps POE Copper Port, 2 x 1000Mbps POE Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40~75°C, Power Input 44-56 VDC

Datasheet ： Henrich_Switch_HES12GB-X-8E-2SFP_DS_EN.pdf

Quick Installation Guide： Henrich_Switch_HES12GB-X-8E_QIG_EN.pdf

LineCard： Henrich_Line_Card_Industrial_Ethernet.pdf
