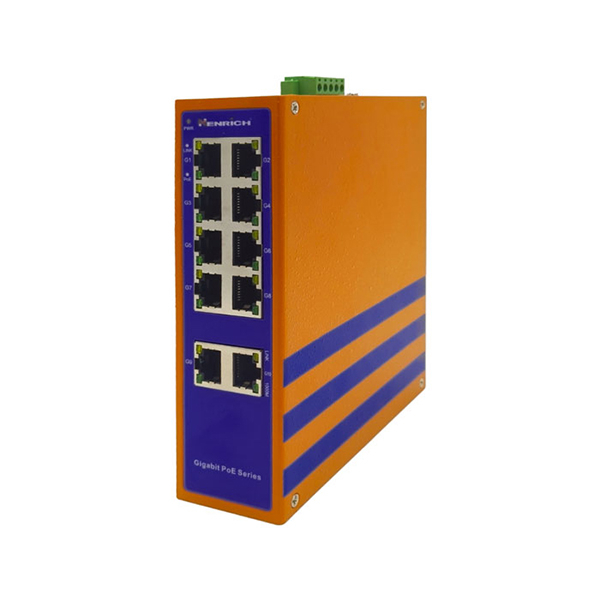

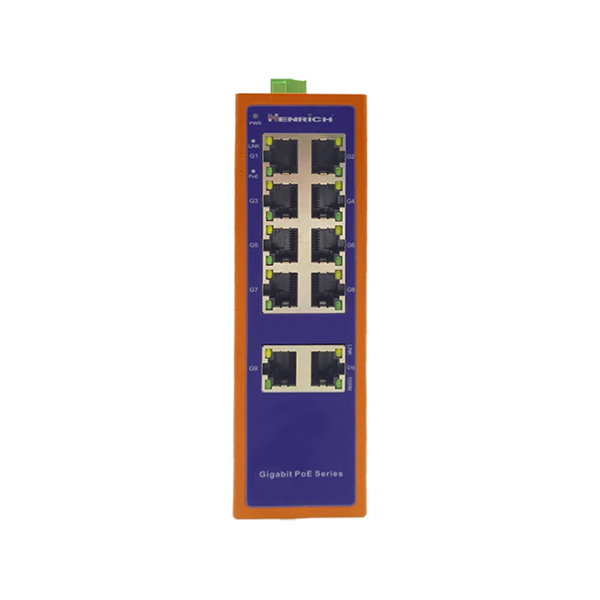

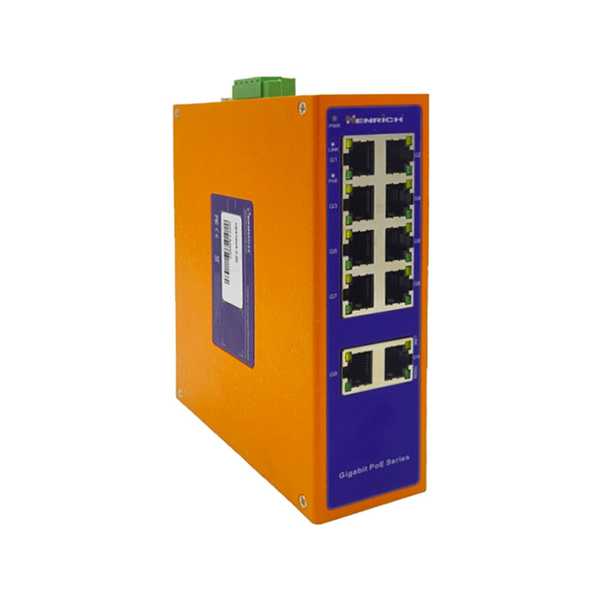

Henrich HES10GB-X-8E 10-port Full Gigabit Din-rail Unmanaged PoE Ethernet Switch

Manufacturer Part Number: HES10GB-X-8E

Brand: Henrich

$ 548.00

8 × 10/100/1000BaseT(X) PoE+ Ports, 2 x 10/100/1000BaseT(X) Ports
IEEE 802.3af/at PoE Standard, up to 30W Output per PoE+ Port
Operates with 240 Watts Full PoE+ Loading

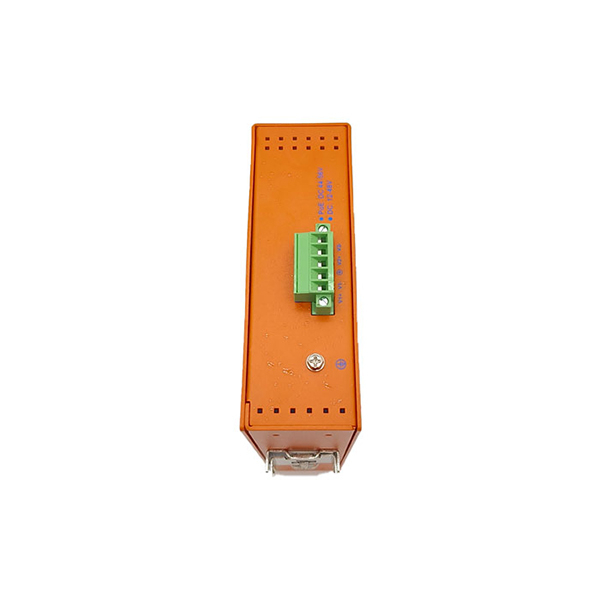

DC 44-56V Redundant Power Supply with Reverse Protection
Smart PoE power supply: power will be supplied to the high priority level port first when the power budget is insufficient and overload operation of the device will be avoided
-10 to 60°C Operating Temperature

See our Shipping Policy for delivery regions and fees

2 Available

The HES10GB/10GA-X series switches are smart, 10-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 8. The switches are classified as power source equipment (PSE), and when used in this way, the HES10GB/10GA-X series switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Ethernet Interface

10/100/1000BaseT(X) Port (RJ45 connector) or 1000BaseSFP Port	RJ45 Port: 2 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	8 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab
PoE Supply Pin	1/2 (+) 3/6 (-)

Switch Properties

Processing Type	Store and Forward (Full Wire Speed)
MAC Table Size	8 k
Packet Buffer Size	2 Mbits

Power Parameters

Input Voltage	DC 44-56 V Redundant Dual Input
Operating Voltage	DC 44-56 V
Power Budget	Standby: < 10 W, Full Load: af < 120 W, at < 240 W
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP30 Design
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.73" × 6.1" × 5.31" (44mm × 155mm × 135mm)

Environmental Limits

Working Temperature	-10℃ to 60℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 90% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS

Warranty

5 Years

HES10GB-X-8E

Din-rail Unmanaged, 8 x 1000Mbps POE Copper Port, 2 x 1000Mbps Copper Port, Industrial Temperature -10 to 60°C, Power Input 44 to 56 VDC

HES10GB-X-8E-2SFP

Din-rail Unmanaged, 8 x 1000Mbps PoE Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -10 to 60 °C, Power Input 44 to 56 VDC

HES10GA-X-8E

Din-rail Unmanaged, 8 x 1000Mbps PoE Copper Port, 2 x 1000Mbps Copper Port, Industrial Temperature -40 to 75 °C, Power Input 44 to 56 VDC

HES10GA-X-8E-2SFP

Din-rail Unmanaged, 8 x 1000Mbps PoE Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40 to 75°C, Power Input 44 to 56 VDC

Datasheet ： Henrich_Switch_HES10GB-X-8E_DS_EN.pdf

Quick Installation Guide： Henrich_Switch_HES10GB-X-8E_QIG_EN.pdf

LineCard： Henrich_Line_Card_Industrial_Ethernet.pdf
