Predision HESIO-T-016 Temperature and Humidity Sensor

Manufacturer Part Number: HESIO-T-016

Brand: Predision

$ 85.00

Temperature Measurement Range: -20°C to 80°C
Temperature Measurement Accuracy: ≤ ±1°C (-20°C to 80°C), ≤±0.5°C (25°C)
Humidity Measurement Range: 0 - 100% RH
Humidity Measurement Accuracy: ≤ 5% RH (at 25°C, 20 - 80% RH)

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

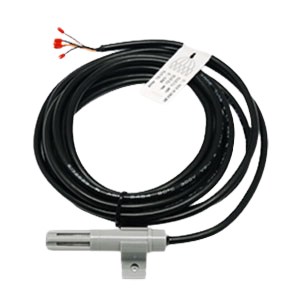

The HESIO-T-016 is a high-precision temperature and humidity sensor utilizing an RJ45 port and RS-485 interface for reliable communication. Leveraging the Modbus protocol for seamless data configuration and acquisition, it is specifically designed for indoor environments requiring stringent climate monitoring, such as telecommunication rooms and data centers.

Temperature Measurement Range	-20℃ to 80℃
Temperature Measurement Accuracy	≤ ± 1℃ (-20℃ to 80℃), ≤ ± 0.5℃ (25℃)
Humidity Measurement Range	0 - 100% RH
Humidity Measurement Accuracy	≤ 5% RH (25℃, 20 - 80% RH)
Communication Interface	RS-485
Communication Protocol	Modbus RTU
Power Supply	5 - 30 VDC
Operating Current	< 10 mA
Operating Temperature	-20°C to 80°C
Storage Temperature	-40°C to 80°C (Non-condensing)
Connection Type	Crimp Terminal Interface
Outlet Length	3m
Probe Length	67 mm

HESIO-T-016

Temperature and Humidity Sensor, Measuring Range: -20℃ to 80℃, 0 - 100% RH, Measuring Accuracy: ≤±1℃ (-20 - 80℃),≤±0.5℃ (25℃), ≤5% RH (25℃, 20 - 80% RH), Power Supply: 5 - 30 VDC, Operating Temperature: -20°C to 80°C.

HESIO-T-017

High Precision Temperature and Humidity Sensor, Measuring Temperature Range: -10℃ to 70℃, Measuring Temperature Accuracy: ±1℃, Power Supply: 5 - 30 VDC, Operating Temperature: -10°C to 70°C.

HESIO-T-018

Temperature and Humidity Sensor, Wall-mounted or Magnetic Mounting, Temperature Measurement Range: -10℃ to 70℃, Temperature Accuracy: ≤± 0.5℃ (-10 - 60℃), Humidity Measurement Range: 0% RH to 100% RH, Humidity Accuracy: ≤ 3% RH (20% RH to 80% RH at 25℃ ), 200W Surge Protection (RS-485), Operating Temperature: -10°C to 70°C.

Datasheet ： Predision_Serial_I-O_Controller_HESIO-T-016_DS_EN.pdf

Quick Installation Guide： Predision_Serial_I-O_Controller_HESIO-T-016_QIG_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
