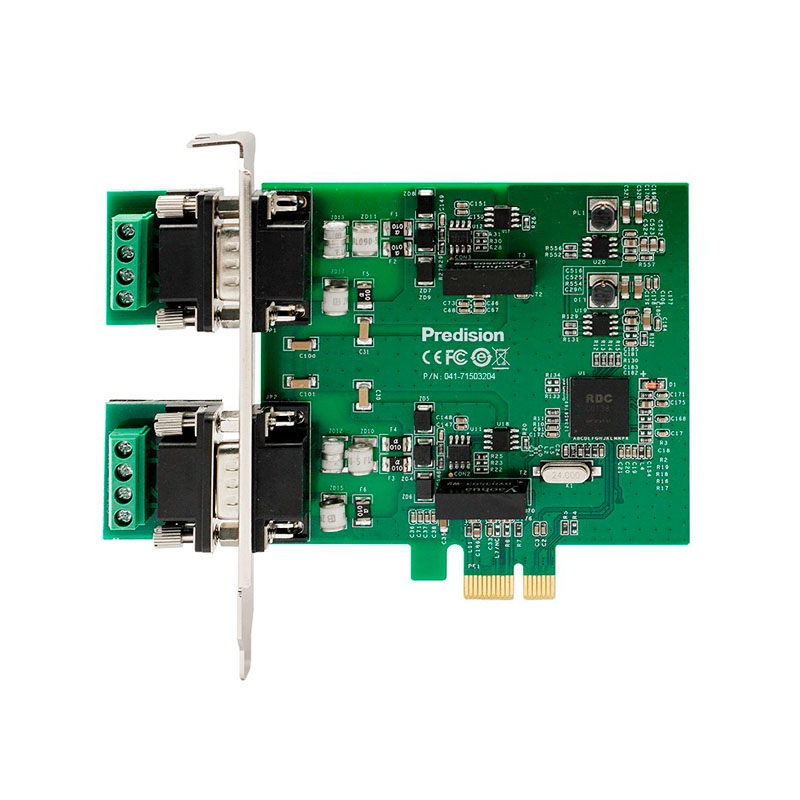

Predision HECS-T-005 PCI-E to 2-port CAN Bus Card

Manufacturer Part Number: HECS-T-005

Brand: Predision

$ 266.00

-40°C to 85°C Operating Temperature
Baud Rate: 500 bps - 1,000 Kbps
Isolated Voltage: 1,500 VDC

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

HECS-T-005 is a general PCI-E to CAN card that can be used in industrial control, intelligent buildings, automotive electronics and other fields. Each HECS-T-005 card provides two CAN bus interfaces, each of which can be regarded as a standard CAN node. Using the HECS-T-005 interface card, a computer can be connected to a standard CAN network, which in turn can perform data processing, data acquisition, data communication, and build field-bus experiments, building intelligent control, industrial intelligent control, and other application fields.
The CAN interface of HECS-T-005 is designed with anti-surge protection, electromagnetic isolation, power isolation and other protection measures, which enhances the anti-interference capability and improves the reliability of the system.

Connection Type	2 DB9 male
Bus	X1 2.5 Gbps PCI Express
Protocol	Supports CAN 2.0A and CAN 2.0B; Supports Extended Frame, Standard Frame, Data Frame, Remote Frame
Signal	CAN, CANH, CANL,GND
Baud Rate	500 bps-1,000 Kbps
Surge Protection	8/20 Waveform 3,000A
Isolation Protection	Isolated Voltage 1,500 VDC
Working Mode	2-wire Half-duplex CAN Transmit, CAN Receive
Protocol Support	CAN2.0A, CAN2.0B Protocols, Compliant With ISO/DIS 11898 Specification, Supports Extended Frames, Standard Frames, Data Frames and Remote Frames
Working Temperature	-40℃ to 85℃
Supporting System	Windows XP, Win7, 8, 10 of 30, 64 Bit, Windows Server 2003 and Other w\Windows Systems
