Name: Predision HECS-T-008 TCP/IP to 2-port CAN Bus Converter
Brand: Predision
Price: 305.00 USD
Availability: OutOfStock

account&orders

Home

Predision HECS-T-008 TCP/IP to 2-port CAN Bus Converter 1

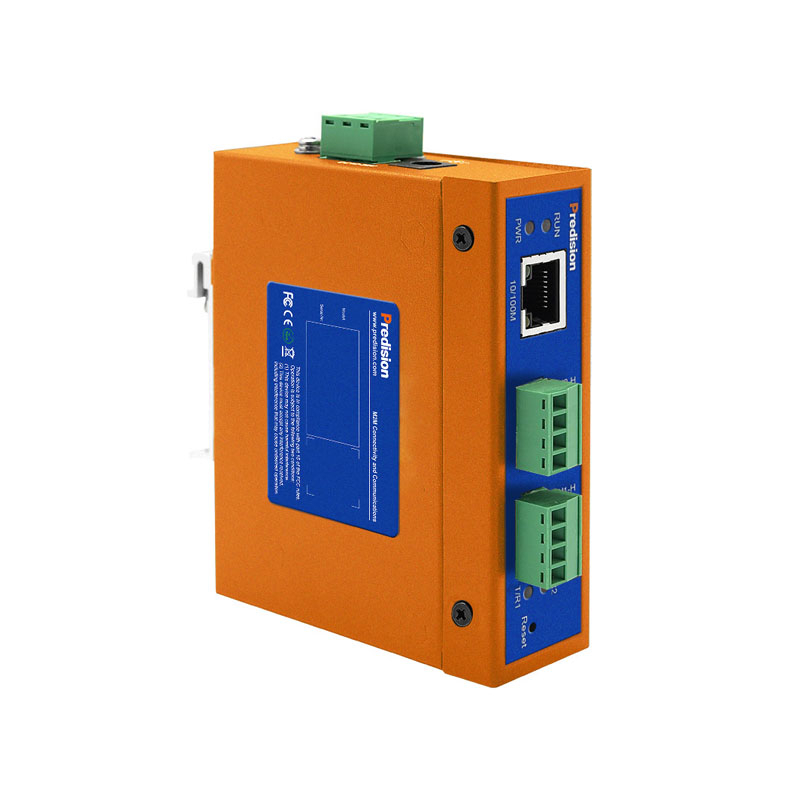

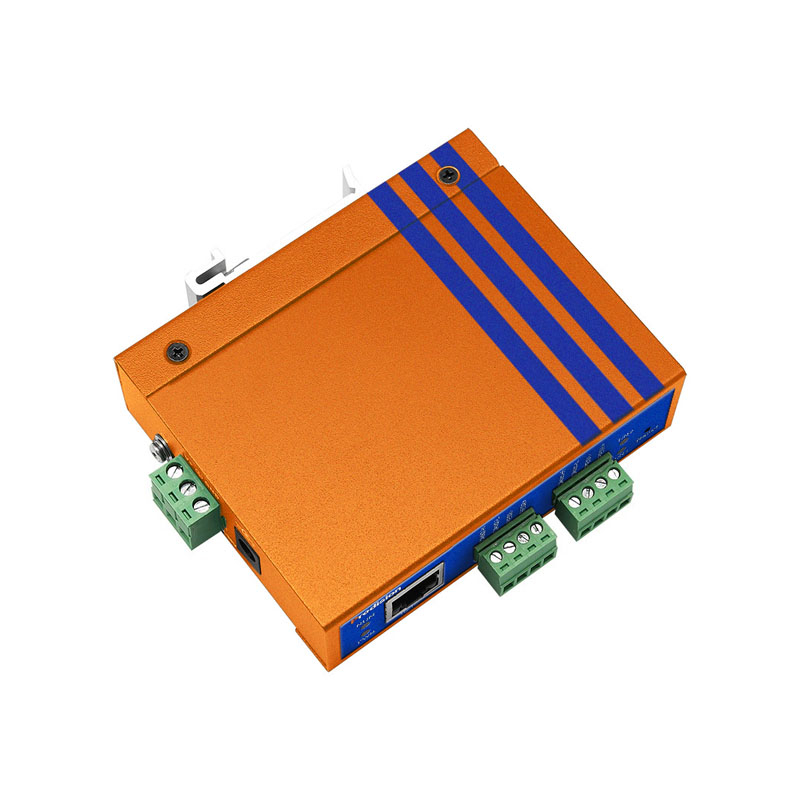

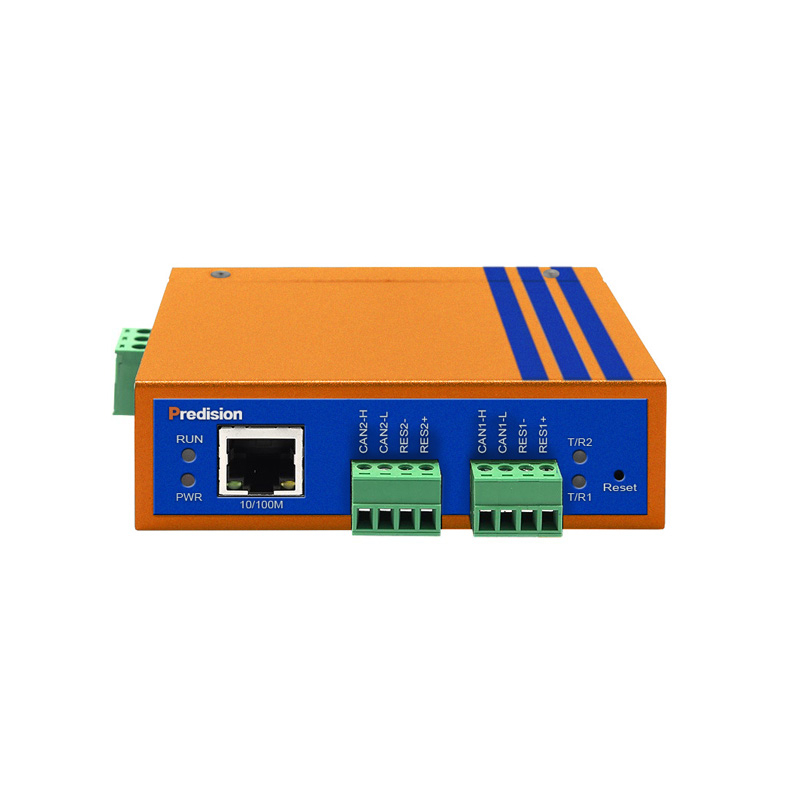

Predision HECS-T-008 TCP/IP to 2-port CAN Bus Converter

Manufacturer Part Number: HECS-T-008

Brand: Predision

$ 305.00

Bidirectional Data Transmission
Working Temperature: -40 ~ 85°C
Operating Voltage: 12 - 36 VDC
Isolated Voltage: 1,000 VDC

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

HECS-T-008 is a high performance CAN Bus communication converter integrating 2 CAN interfaces and 1 Ethernet interface. The converter supports 10M/100M Ethernet network and 5Kbps~1Mbps communication rate CAN Bus interconnection, which extends the application range of CAN Bus and Ethernet. HECS-T-008 converter provides Web configuration interface, so that users can flexibly set the operation parameters of HECS-T-008 converter. With industrial grade high standard design, isolation between communication interface and system, anti-interference and anti-surge capability, this device is widely used in industrial control and data communication system.

Transmission Direction	Supports Bidirectional Data Transmission between CAN Bus and TCP/IP
Protocol	Supports USB 2.0 Protocol
Interface	2-port CAN Bus Communication Interface, Supporting 5Kbps-1Mbps Communication Rate, 1-port 10/100M Ethernet Interface
Operating Voltage	12-36 VDC
Operating Current	≤ 150 mA @ 12V
Operating Temperature	-40~ 85℃
Storage Temperature	-40~ 85°C
Operating Humidity	5% to 95% (Non-condensing)
Storage Humidity	5% to 95% (Non-condensing)
Isolation Voltage	1,000 VDC
Electrostatic Protection	Air 8KV, Contact 6KV
Surge Protection	Power Port: 1.2/50us Common Mode 2kV, Differential Mode 1kV Ethernet Port: 10/700us Common mode 2kV, Differential mode 1kV CAN Port: 600W

HECS-T-002

RS-232 to CAN BUS Converter, CAN 2.0 Protocol, Transmission Rate 5Kbps-1Mbps for Can bus Interface, Transmission Rate 600bps-230.4Kbps for RS-232 Interface, Operating Voltage: 12-36 VDC, Operating Temperature: -40 ~ 85℃, Isolated Voltage: 1,000 VDC

HECS-T-003

RS-232/485 to CAN BUS Converter, Supports CAN 2.0 Protocol, Transmission Rate 5 Kbps - 1 Mbps for Can bus Interface, Transmission Rate 600 bps - 230.4 Kbps for RS-232 Interface, Operating Voltage: 12-36 VDC, Operating Temperature: -40℃ to 85℃, Isolation Voltage: 1,000 VDC

HECS-T-004

USB/RS-232 to CAN Bus Protocol Converter, Din-rail, Iron Enclosure, Operating Voltage: 12-36 VDC/USB Power Supply, Operating Temperature: -40°C to 85°C

HECS-T-005

PCI-E to 2-port CAN Bus Card, 4U, Bus: X1 2.5 Gbps PCI Express, CAN Communication Transmission Rate: 500 bps-1,000 Kbps, Surge Protection: 8/20 Waveform 3,000A, Isolated Voltage 1,500 VDC, Working Temperature: -40 - 85°C

HECS-T-006

100M Fiber to 2-port CANBUS Converter, Din-rail Mounting, Iron Enclosure, Supports CAN2.0 Protocol, Operating Voltage: 12-36 VDC, Operating Temperature: -40°C to 85°C, Isolation Voltage: 1,000 VDC

HECS-T-008

TCP/IP to 2-port CAN Bus Converter, Din-rail, Iron Enclosure, Supports CAN 2.0 Protocol, Operating Voltage: 12-36 VDC, Operating Temperature: -40~85°C, Isolated Voltage: 1000 VDC

Datasheet ： Predision_Converter_HECS-T-008_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
