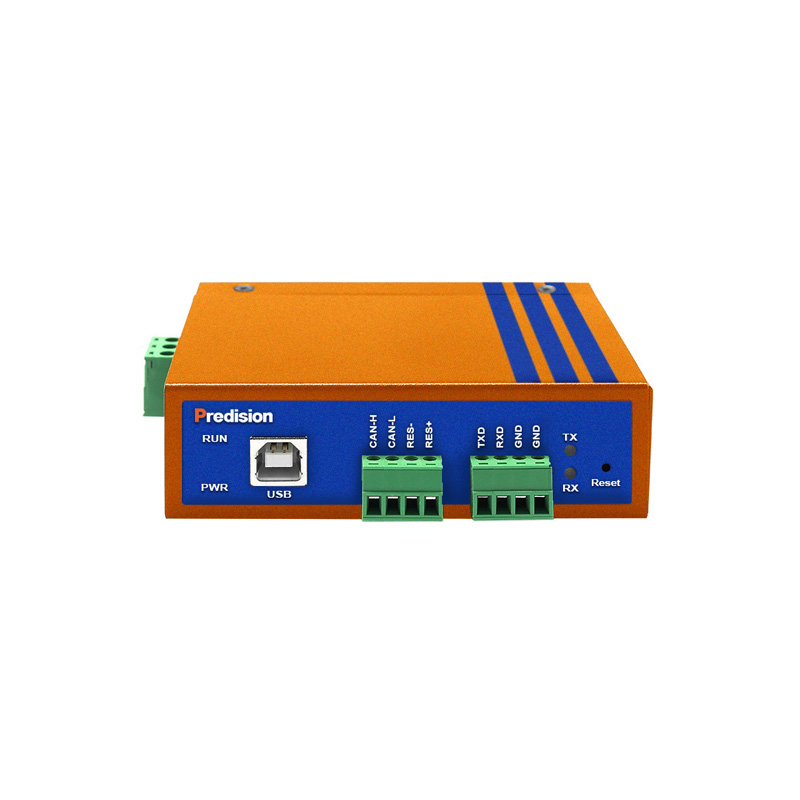

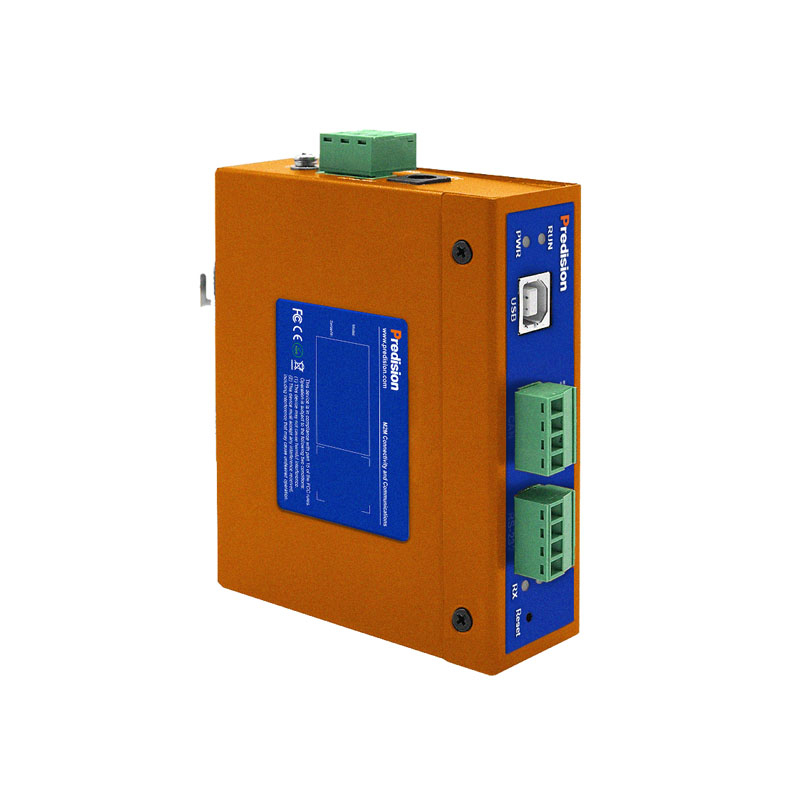

Name: Predision HECS-T-004 USB/RS-232 to CAN BUS Converter
Brand: Predision
Price: 193.00 USD
Availability: OutOfStock

account&orders

Home

Predision HECS-T-004 USB/RS-232 to CAN BUS Converter

Manufacturer Part Number: HECS-T-004

Brand: Predision

$ 193.00

Bidirectional Data Transmission
Operating Temperature: -40°C to 85°C
Baud Rate: The CAN Bus Port Supports 5Kbps-1Mbps Baud Rate, the RS-232 Port Supports 300 bps-250 Kbps Baud Rate
Operating Voltage: 12-36 VDC/USB Power Supply

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

HECS-T-004 is a high performance USB and RS-232 to CAN Bus communication protocol converter. The converter supports interconnection between USB and CAN Bus or RS-232 and CAN Bus, and supports power supply or USB power supply, which further extends the application range of this converter. HECS-T-004 converter provides configuration tools, so that users can flexibly set the interface parameters of HECS-T-004 converter. This product is designed according to Industrial-grade high standard with isolation between CAN communication interface and the system. Anti-interference and anti-surge capability provide the wide application performance in industrial control and data communication system.

Protocol	Supports Bidirectional Data Transmission between CAN Bus and USB or CAN Bus and RS-232
Baud Rate	1 CAN-bus Port Supports 5 Kbps-1 Mbps Baud Rate; 1 RS-232 Port Supports 300 bps-250 Kbps Baud Rate.
Operating Voltage	12-36 VDC/USB Power Supply
Operating Current	≤ 150 mA @ 12 V
Operating Temperature	-40 ~ 85 °C
Storage Temperature	-40 ~ 85°C
Operating Humidity	5~95% (no condensing)
Storage Humidity	5~95% (no condensing)
Isolation Voltage	1,000 VDC
Electrostatic Protection	Air 8 kV, Contact 6 kV
Surge Protection	Power port: 1.2/50 us common mode 2 kV, differential 1 kV CAN port: 600W RS-232 port：600W

HECS-T-002

RS-232 to CAN BUS Converter, CAN 2.0 Protocol, Transmission Rate 5Kbps-1Mbps for Can bus Interface, Transmission Rate 600bps-230.4Kbps for RS-232 Interface, Operating Voltage: 12-36 VDC, Operating Temperature: -40 ~ 85℃, Isolated Voltage: 1,000 VDC

HECS-T-003

RS-232/485 to CAN BUS Converter, Supports CAN 2.0 Protocol, Transmission Rate 5 Kbps - 1 Mbps for Can bus Interface, Transmission Rate 600 bps - 230.4 Kbps for RS-232 Interface, Operating Voltage: 12-36 VDC, Operating Temperature: -40℃ to 85℃, Isolation Voltage: 1,000 VDC

HECS-T-004

USB/RS-232 to CAN Bus Protocol Converter, Din-rail, Iron Enclosure, Operating Voltage: 12-36 VDC/USB Power Supply, Operating Temperature: -40°C to 85°C

HECS-T-005

PCI-E to 2-port CAN Bus Card, 4U, Bus: X1 2.5 Gbps PCI Express, CAN Communication Transmission Rate: 500 bps-1,000 Kbps, Surge Protection: 8/20 Waveform 3,000A, Isolated Voltage 1,500 VDC, Working Temperature: -40 - 85°C

HECS-T-006

100M Fiber to 2-port CANBUS Converter, Din-rail Mounting, Iron Enclosure, Supports CAN2.0 Protocol, Operating Voltage: 12-36 VDC, Operating Temperature: -40°C to 85°C, Isolation Voltage: 1,000 VDC

HECS-T-008

TCP/IP to 2-port CAN Bus Converter, Din-rail, Iron Enclosure, Supports CAN 2.0 Protocol, Operating Voltage: 12-36 VDC, Operating Temperature: -40~85°C, Isolated Voltage: 1000 VDC

Datasheet ： Predision_Converter_HECS-T-004_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
