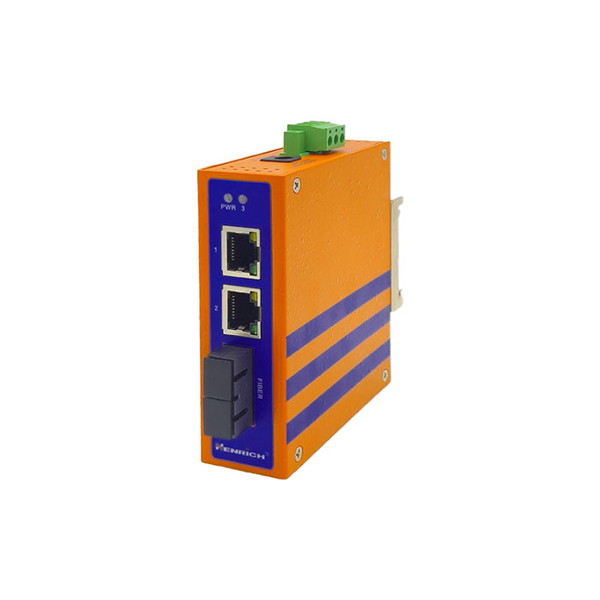

Henrich HEMC3GB-X-SC Gigabit Ethernet-to-fiber Industrial Media Converter
Manufacturer Part Number: HEMC3GB-X-SC
Brand: Henrich
$ 227.00
- 2 × 10/100/1000BaseT(X) Ports and 1 x 1000Base-SX/LX Port
- Multi-mode SC Fiber Connector
- -40°C to 75°C Operating Temperature Range Available
- DC 12-48V Power Supply with Reverse Polarity Protection
- IP30 Din-rail Mounting
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: June 20, 2026 (UTC-4)
The HEMC3GA/B-X series industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100Base-SX/LX (SC/ST connectors). With the strengthened EMC grade, the HEMC3GA/B-X media converters are designed for harsh industrial environments while complying with FCC, and CE standards. Two operating temperature ranges are supported: -10°C to 60°C and -40°C to 75°C. SC and ST fiber connection types are supported in both multi-mode and single-mode formats for various applications. Reverse polarity protection is supported.
Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 Connector) | 2 Ports, Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed |
| 1000Base-SX/LX Port | 1 Port, SC Interface, Multi-mode |
| Standards | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x |
| Power Connector | DC Socket or Phoenix Terminal, with Built-in Reverse Polarity Protection |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 550m | 20km |
| Center Wavelength | 850nm | 1310nm |
| TX Power | -5 ~ -9dBm | -3 ~ -9dBm |
| RX Power | ≥-17dBm | ≥-22dBm |
| Transmission Rate | 1000Mbps | 1000Mbps |
Power Parameters
| Input Voltage | DC 12-48V |
| Power Consumption | Standby < 4W, Full load < 6W |
| Power Connector Type | 3-pin Industrial Phoenix Terminal |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP30 Rating |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 1.2" × 3.9" × 3.5" (30mm × 98 mm × 88 mm) |
Environmental Limits
| Working Temperature | -10℃ to 60℃ |
| Storage Temperature | -40℃ to 85℃ |
| Relative Humidity | 5% to 90% (Non-condensing) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 years |
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, ST Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -10~60°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, SC Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 550m, ST Interface, Industrial Temperature: -40~75°C, Power Input 12-48 VDC, 98 x 88 x 30mm
Din-rail Media Converter, 2 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -40~75°C, Power Supply 12~48 VDC, 98 x 88 x 30 mm
