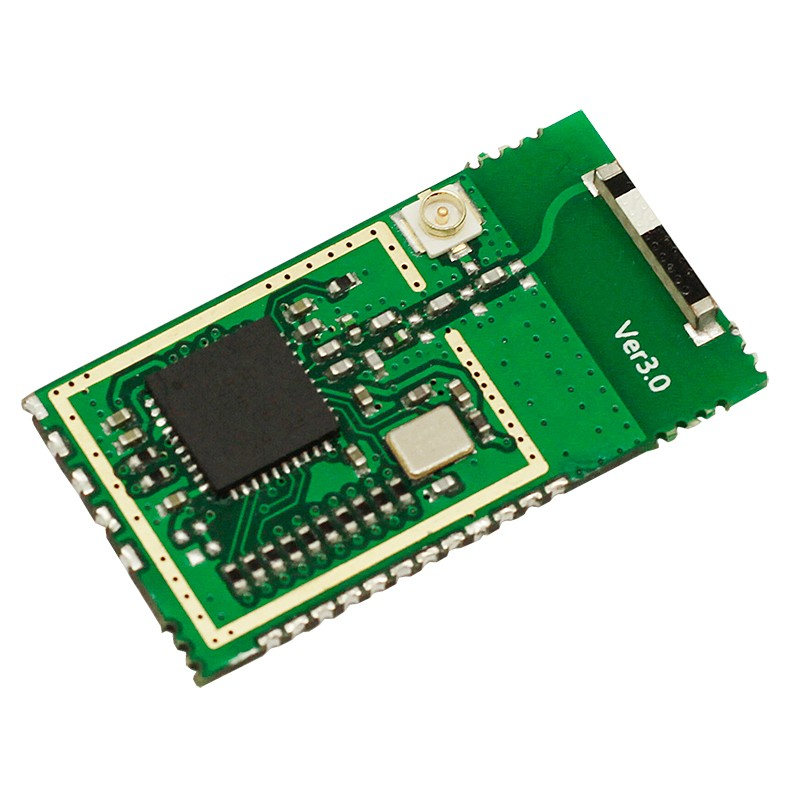

Predision HEAP-T-001 Wireless Zigbee Module
Manufacturer Part Number: HEAP-T-001
$ 37.00
- Working Voltage: 2.0 ~ 3.6 V
- Working Temperature: -40°C to 85°C
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
HEAP-T-001 is a small size wireless zigbee module, based on the physical layer of IEEE 802.15.4. It uses the 2.4GHz free frequency band. This product is a short-distance, low-power and bidirectional communication module. This module uses the high-performance industrial-grade chip CC2530 from TI, which integrates the 8051 microcontroller and wireless transceiver. The module has URAT, ADC, SPI interfaces.
| Working Voltage | 2.0 ~ 3.6 V |
| Working Current | 25 mA (TX), 12 mA (RX) |
| Working Frequency | 2,405 ~ 2,480 MHz |
| Transmitting Power | 4.5 dBm (Max) |
| Receiving Sensitivity | -97 dBm |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
| Antenna Type | Ceramic Antenna (IPEX Can Be Connected to An External Coaxial Antenna) |
Wireless Zigbee Module, 2,405 ~ 2,480 MHz, TX 4.5dBm(Max) , RX -97dBm, 2.0V~3.6V
Wireless Carrier 433MHz to RS-232/485/422, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 433MHz Carrier 300 m (Open Space), RS-232 5 m (1,200 - 38,400 bps) RS-485/422 1200 m (1,200 - 115,200 bps), Operating Temperature: -10℃ to 70℃.
Zigbee 2.4G to RS-232/485/422 Wireless Data Transmission Converter, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 2.4 GHz Carrier 2,000 m (Open Space); RS-232 5 m(1,200 - 115,200 bps); RS-485/422 1,200m (1,200 - 115,200 bps), Operating Temperature: -25℃ to 70℃.
300 Mbps Wireless AP Repeater, Metal Enclosure, Power Supply: 12 - 24 VDC, Transmission Speed: 300 Mbps, Operating Temperature: -20℃ to 70℃.
Wireless AP Receiver, 1×10/100Mbps WAN, 2×10/100Mbps LAN, Power Supply: 12 - 48 VDC, AP, Relay, ISP, and Router modes, Transmission Speed: 150 Mbps.
