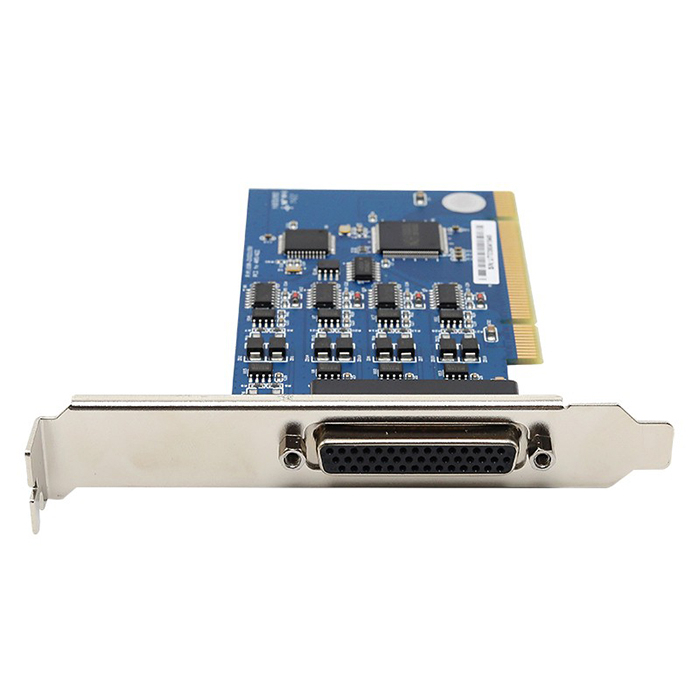

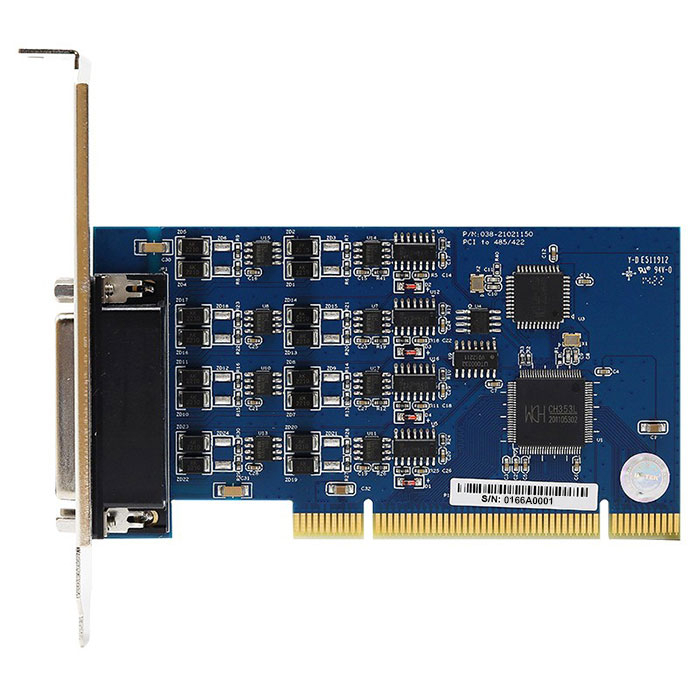

Predision HEMSA-T-016 PCI to 4-port RS-485/422 Multi-serial Card
Manufacturer Part Number: HEMSA-T-016
Brand: Predision
$ 116.00
- Working Temperature: -40°C to 85°C
- Baud Rate: 300 - 115,200 bps
- 600W Lightning Surge Protection for RS-485/422 Signal Wire
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEMSA-T-016 is a PCI to 4-port RS-485/422 serial card designed to convert single-ended PCI signals into RS-485/422 signals. It features a high-speed transient voltage suppressor (TVS) that effectively neutralizes lightning and ESD, providing 600W of lightning surge protection per wire.
This protection extends to surges and transient over-voltages from various sources, ensuring circuit stability. Additionally, the card's extremely low inter-pole capacitance facilitates high-speed, reliable data transmission across all RS-485/422 ports.

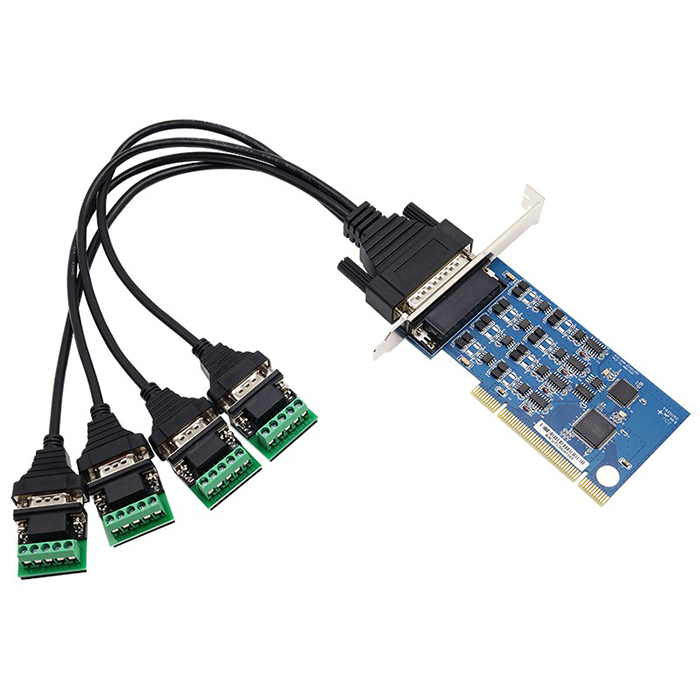

| Interface Connection | 1 DR44 Female Connector, Cable DR44 Male Connector to 4-port DB9 |
| Bus | PCI |
| Signals | RS-422: T/R+, T/R-, RXD+, RXD-, GND RS-485: Data+ (A), Data- (B), GND |
| Transmission Rate | 300 bps - 115.2 Kbps |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Operating Temperature | -40℃ to 85℃ |
| Interface Protection | 600W Lightning Surge Protection for RS-485/422 Signal Wire |
| Transmission Distance | 1.2km for RS-485/422 Port |
| Support System | Windows 8/8.1/2016/10/XP/Vista/7/2003/2008/98/NT4.0/Linux |
PCI to 2-port RS-485/422 High Speed Multi-serial Card with Photoelectric Isolation, 2U / 4U, Baud Rate: 300 - 921,600 bps, Operating Temperature: -40℃ to 85℃
PCI to 2-port RS-485/422 High Speed Serial Adapter, 4U, photoelectric Isolated, Baud Rate: 300 bps-921.6 Kbps, Working Temperature: -40℃ to 85℃
PCI to 4-port RS-485/422 Multi-serial Card, 2U / 4U, Transmission Rate: 300 bps-115.2 Kbps, 600W Lightning Surge Protection for RS-485/422 Signal Wire, Working Temperature: -40℃ to 85℃
PCI to 8-port RS-485/422 High-Speed Serial Card, 4U, Baud Rate: 300 - 921,600 bps, Operating Temperature: -40℃ to 85℃
